5/16" Wire Rope Swage Sleeves, Oval Shape, Copper, 5 Pieces - FD710608
Save 50%
Original price
$32.00
Original price
$32.00
-
Original price
$32.00
Original price
$32.00
Current price
$15.88
$15.88
-
$15.88
Current price
$15.88
SKU FD710608
Availability:
in stock, ready to be shipped

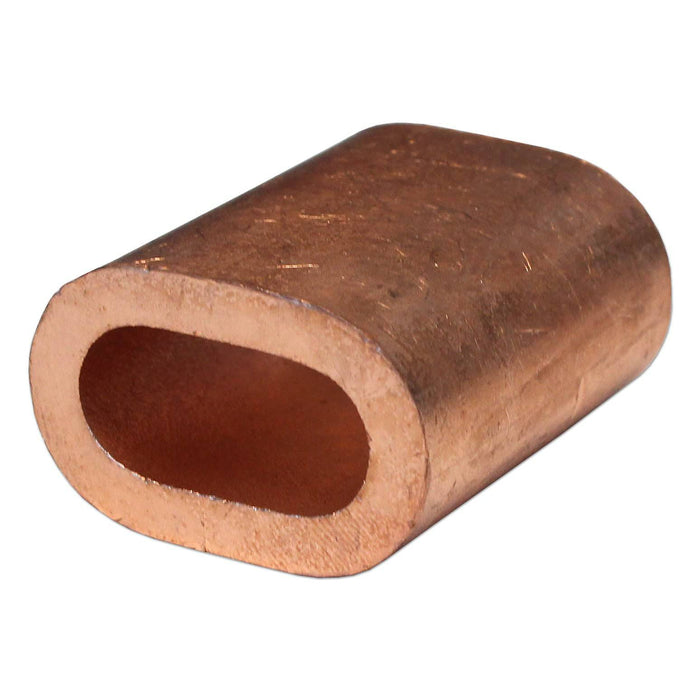

COPPER SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 5/16" |
| A: | 1.1" (27.9mm) |
| B: | 0.60" (15.3mm) |
| C: | 0.95" (24.1mm) |
| Terminal Material: | Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
