3/64" Wire Rope Swage Sleeves, Oval Shape, Zinc Plated Copper, 25 Pieces - FD710701
Save 90%
Original price
$33.25
Original price
$33.25
-
Original price
$33.25
Original price
$33.25
Current price
$3.20
$3.20
-
$3.20
Current price
$3.20
SKU FD710701
Availability:
in stock, ready to be shipped

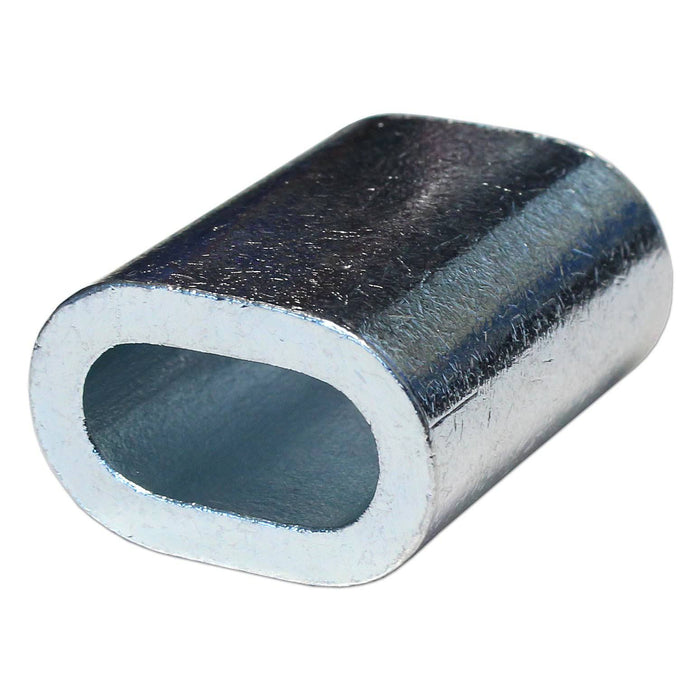

ZINC PLATED COPPER SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 3/64" |
| A: | 0.19" (4.84mm) |
| B: | 0.10" (2.71mm) |
| C: | 0.16" (4.04mm) |
| Terminal Material: | Zinc-Plated Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
