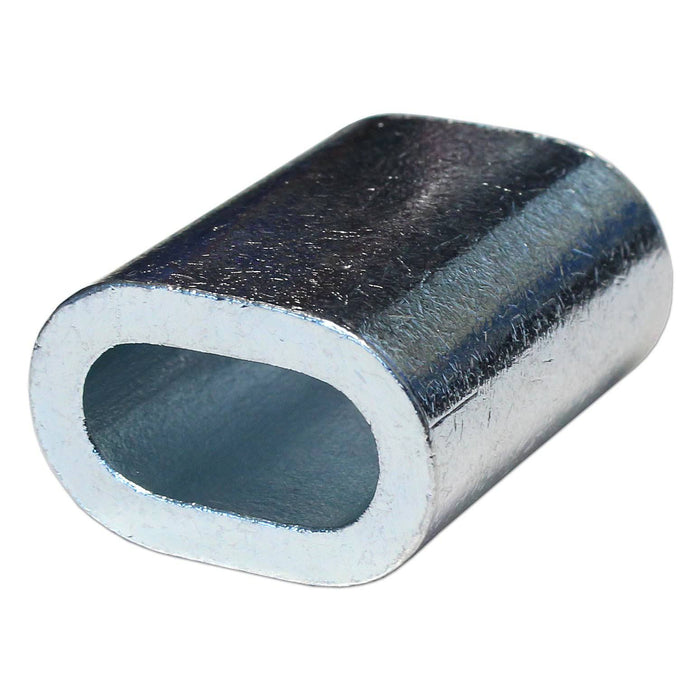

1/4" Wire Rope Swage Sleeves, Oval Shape, Zinc Plated Copper, 10 Pieces - FD710706

Save 64% Save 64%
Original price $43.89
Original price $43.89 - Original price $43.89
Original price $43.89
Current price $15.72
$15.72 - $15.72
Current price $15.72
SKU FD710706
Availability:
in stock, ready to be shipped
Pack Quantity: 10 Pieces

ZINC PLATED COPPER SWAGE SLEEVES: OVAL SHAPE

Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.


DIMENSIONS & FEATURES:

Wire Range: 1/4"
A: 0.83" (21.19mm)
B: 0.45" (11.5mm)
C: 0.72" (18.24mm)
Terminal Material: Zinc-Plated Copper
Temperature Rating: 75oC
Voltage Rating: 600 Volts
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:

COMPARE TO THESE PARTS:
