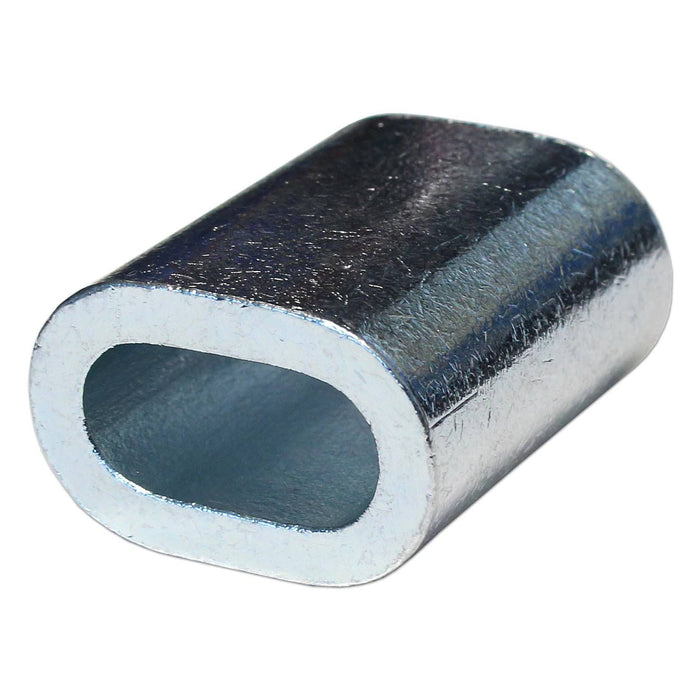

1/2" Wire Rope Swage Sleeves, Oval Shape, Zinc Plated Copper, 1 Piece - FD710713
Save 26%
Original price
$21.60
Original price
$21.60
-
Original price
$21.60
Original price
$21.60
Current price
$15.88
$15.88
-
$15.88
Current price
$15.88
SKU FD710713
Availability:
in stock, ready to be shipped
ZINC PLATED COPPER SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 1/2" |
| A: | 1.83" (46.59mm) |
| B: | 0.98" (25.04mm) |
| C: | 1.54" (39.3mm) |
| Terminal Material: | Zinc-Plated Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
