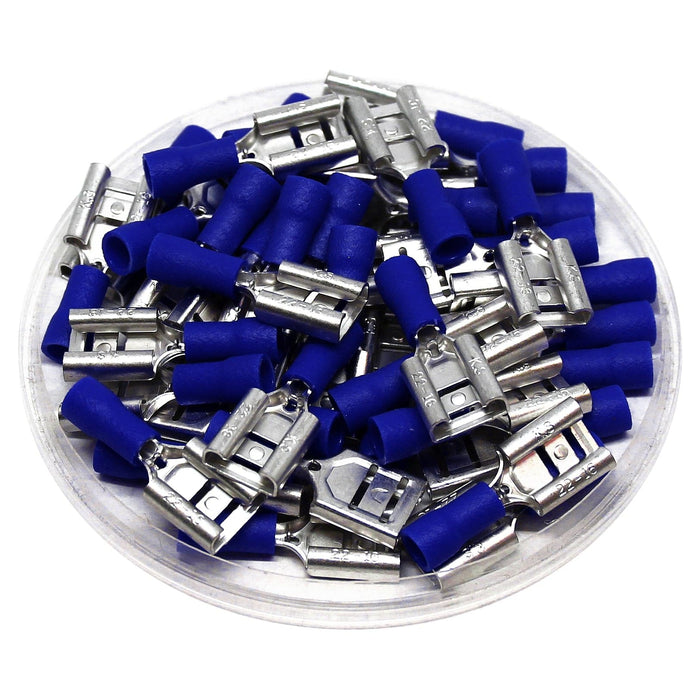

FDD2-312 - FEMALE - 16-14AWG Double Crimp Quick Disconnects - Vinyl
Original price
$14.43
-
Original price
$14.43
Original price
$14.43
$14.43
-
$14.43
Current price
$14.43
SKU FDD2-312
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8mm x 8.0mm (0.032" x 0.31") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| T: | 0.4mm (0.016") |
| L: | 24.5mm (0.96") |
| F: | 10.0mm (0.39") |
| F1: | 10.5mm (0.41") |
| W: | 8.2mm (0.32") |
| D: | 4.7mm (0.18") |
| B: | 2.3mm (0.09") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
