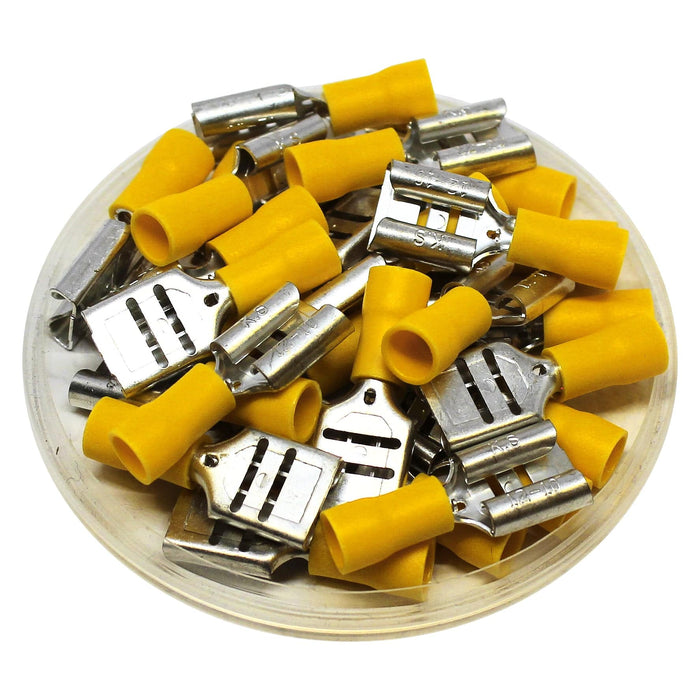

FDD5-312 - Vinyl Insulated Female Quick Disconnects - Double Crimp - 12-10 AWG

Original price $19.44 - Original price $19.44
Original price
$19.44
$19.44 - $19.44
Current price $19.44
SKU FDD5-312
Availability:
Low stock
Pack Quantity: 100 Pieces
true
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
T: 0.4mm (0.02")
L: 27mm (1.06")
F: 10mm (0.39")
B: 13mm (0.51")
W: 8.2mm (0.32")
D: 6.2mm (0.24")
C: 3.4mm (0.13")
Nema Tab: 0.8 x 8.0mm (0.032 x 0.315")
Material: Tin Plated Brass
Insulation Material: Vinyl
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 24A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
