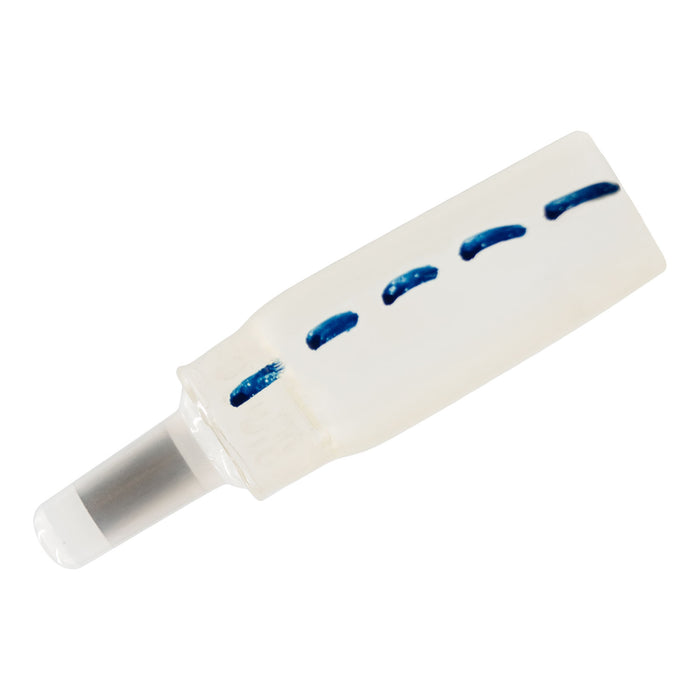

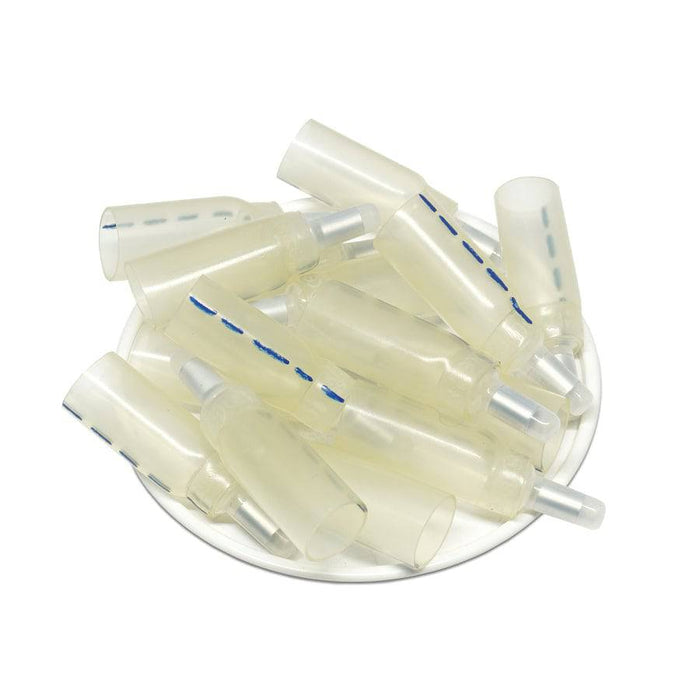

16 to 14 AWG Heat Shrinkable Multi-Wire Closed End Connectors, Blue Dash, Polyolefin, 25 Pieces - FDEC2L

Original price $4.71 - Original price $4.71
Original price
$4.71
$4.71 - $4.71
Current price $4.71
SKU FDEC2L
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces

HEAT SHRINKABLE CLOSED END CONNECTORS

Multi-Wire Heat Shrink Closed End Connectors are made of dual wall polyolefin consisting of a meltable integral inner wall. These connectors are non-corrosive, and the meltable adhesive is extra-active and free-flowing, helping to create a weatherproof connection. To protect wires from abrasions, mechanical abuse, water, salt and other contaminants, these connectors are commonly used in automotive and marine vehicles, and other various electrical applications. These connectors are designed with a clearly marked dashed line helps to quickly identify wire gauge range.

  • 3:1 Shrink Ratio
  • Waterproof
  • Excellent Replacement for Wire Nuts
  • Active Adhesive Seals Between Multiple Wires
  • Excellent Stretch & Mechanical Damage Resistance


DIMENSIONS & FEATURES:

Wire Size: 16 to 14 AWG
Color: Clear with Blue Dash
Shrink Ratio: 3:1
L: 1.65" (41.9mm)
Terminal Material: Tin-Plated Copper
Insulation Material: Polyolefin
Operating Temperature: -67°F to 257°F (-55°C to 125°C)
Waterproof: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


COMPARE TO THESE PARTS:
