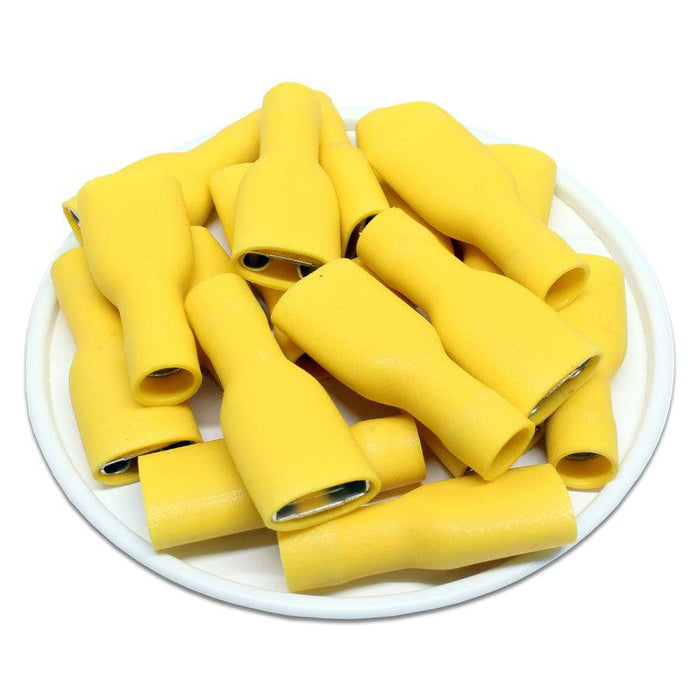

FDFD5-375 - 12-10AWG Fully Insulated Double Crimp Female Quick Disconnects - Vinyl

$19.80
SKU FDFD5-375
Piece Quantity
  • Made of tin plated brass and insulated with Vinyl.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  • Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


  • Dimensions & Features:

    Wire Range: 12-10 AWG
    L: 30.5mm (1.20")
    F: 12.0mm (0.47")
    W: 10.0mm (0.39")
    T: 0.5mm (0.02")
    B: 12.5mm (0.49")
    D: 6.2mm (0.24")
    C: 3.4mm (0.13")
    Nema Tab: 0.05" X 0.37" (1.2mm X 9.4mm)
    Terminal Material: Brass and Copper
    Profile: Oval
    Insulation Material: Vinyl
    Color: Yellow
    AMP Rating: 20-24 AMP
    Electrical Rating: 105oC - 600 Volts
    UL Recognized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:
