FDFNS2-250 - 16 to 14 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, 100 Pieces
Original price
$13.56
-
Original price
$13.56
Original price
$13.56
$13.56
-
$13.56
Current price
$13.56
SKU FDFNS2-250
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| W: | 6.6mm (0.26") |
| F: | 7.9mm (0.31") |
| L: | 23.0mm (0.91") |
| B: | 11.2mm (0.44") |
| D: | 4.5mm (0.17") |
| T: | 0.5mm (0.02") |
| Nema Tab: | 0.8 x 6.3mm (0.03 x 0.25") |
| Terminal Material: | Tin-Plated Brass |
| Temperature Rating: | 105°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Current: | 10AMP |
| Terminal Insulation: | Nylon |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

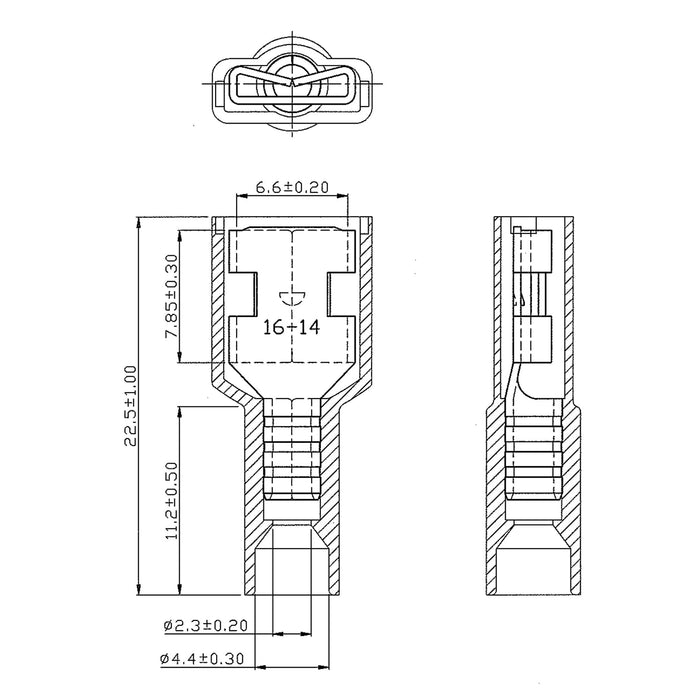

Product Drawing:
Cross References
Cross Reference Parts:None
