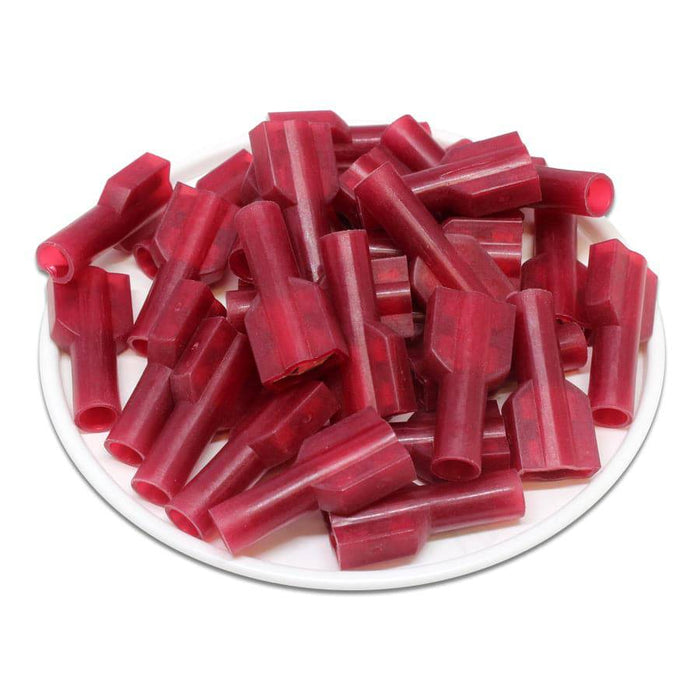

FDFNY1-250 - Nylon Fully Insulated Female Quick Disconnects - 22-16 AWG
Original price
$11.96
-
Original price
$11.96
Original price
$11.96
$11.96
-
$11.96
Current price
$11.96
SKU FDFNY1-250
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.45mm (0.018") |
| L: | 22.5mm (0.886") |
| F: | 7.9mm (0.31") |
| B: | 12.0mm (0.47") |
| W: | 6.6mm (0.26") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| Terminal Material: | Tin-Plated Brass |
| Terminal Insulation: | Nylon |
| Insulation Profile: | Dome |
| Voltage Rating: | 300 Volts |
| Max Electrical Rating: | 10 AMP |
| Temperature Rating: | 105°C |
| NEMA Tab: | 0.8mm X 6.35mm (0.032" X 0.250") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
