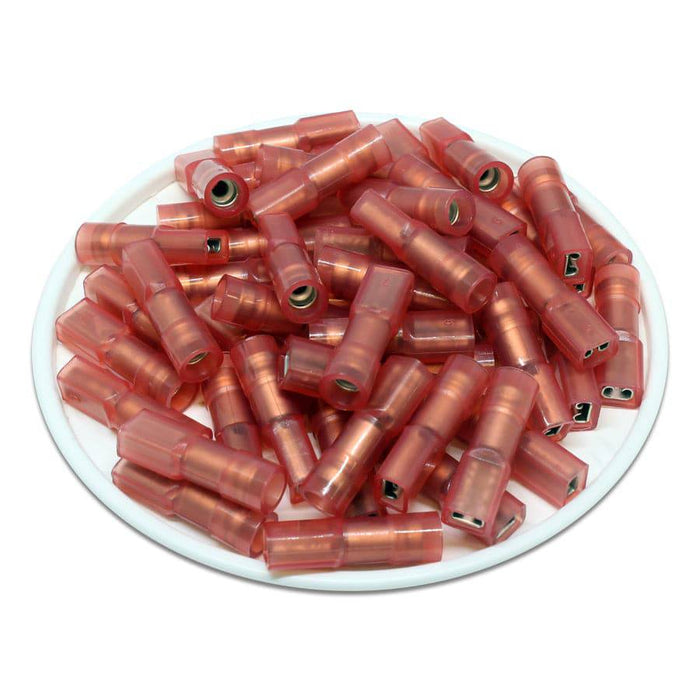

FDFNYD1-110(5) - 22 to 16 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, Red, Double Crimp, 100 Pieces
Original price
$16.24
-
Original price
$16.24
Original price
$16.24
$16.24
-
$16.24
Current price
$16.24
SKU FDFNYD1-110(5)
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Quick disconnects form a splice when fitted together and can be easily disconnected without causing damage to the terminal or insulation. Double crimp copper sleeve provides maximum electrical conductivity, strengthens the barrel, and protects the wire against stress and high vibration.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
|
| Color: | Red | |
| W: | 3.2mm (0.13") |
|
| F: | 6.4mm (0.25") | |
| L: | 19.5mm (0.77") | |
| B: | 11mm (0.43") | |
| D: | 4mm (0.16") | |
| T: | 0.3mm (0.012") | |
| Nema Tab: | 0.5mm x 2.8mm (0.020" x 0.110") | |
| Material: | Tin Plated Brass |
|
| Max Electrical Rating: | 105°C - 600 Volts |
|
| Max Electrical Current: | 10 AMP |
|
| UL Approved: |
|
|
| CE Certified: |
|
|
| RoHS Compliant: |
|
Product Drawing:
Cross References
Cross Reference Parts:None
