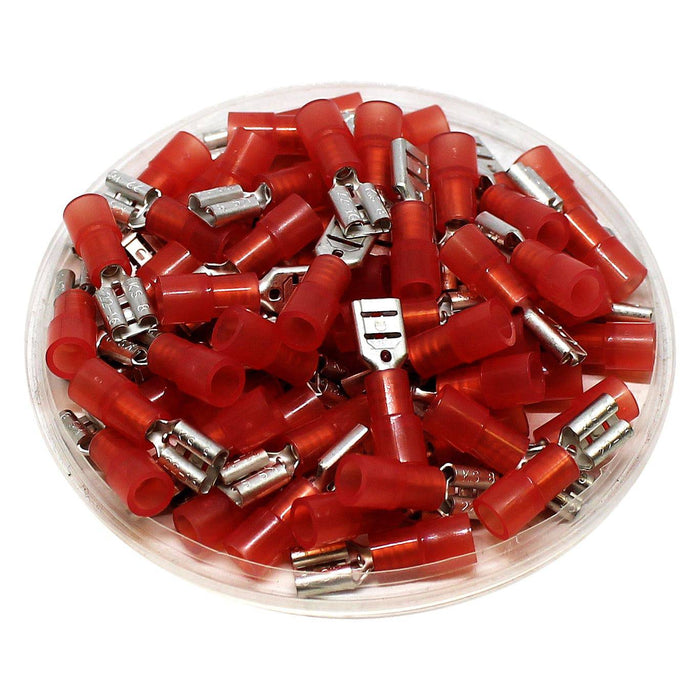

FDNY1-187(5) - 22 to 16 AWG Nylon Insulated Quick Disconnects, Female, Red, 100 Pieces
Original price
$6.34
-
Original price
$6.34
Original price
$6.34
$6.34
-
$6.34
Current price
$6.34
SKU FDNY1-187(5)
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
Panduit: DNF18-187-C
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.5 x 4.75mm (0.02 x 0.18") |
| Temperature Rating: | 105°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Rating: | 10 AMP |
| T: | 0.35mm (0.01") |
| L: | 20.0mm (0.79") |
| F: | 6.4mm (0.25") |
| B: | 11.0mm (0.43") |
| W: | 5.0mm (0.20") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References:
Cross Reference Parts:Panduit: DNF18-187-C
