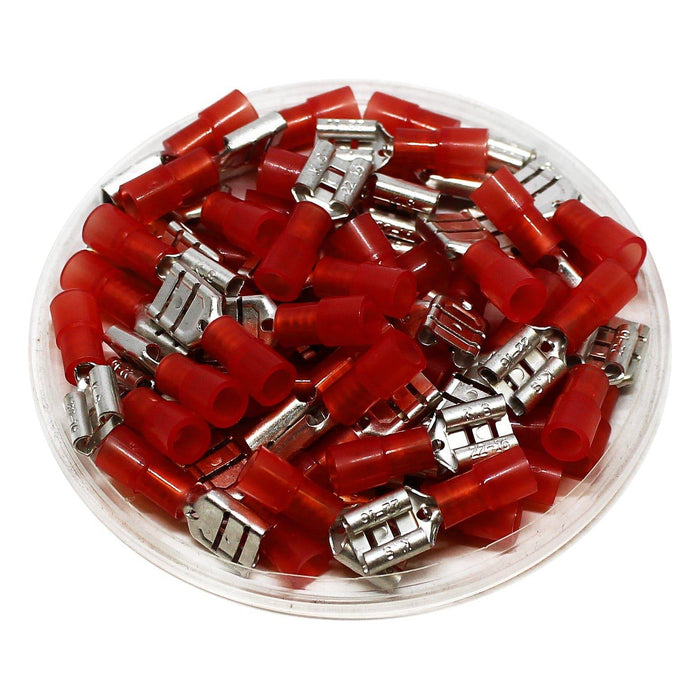

FDNY1-250 - 22-16AWG Female Quick Disconnects - Nylon
Original price
$7.99
-
Original price
$7.99
Original price
$7.99
$7.99
-
$7.99
Current price
$7.99
SKU FDNY1-250
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
Thomas & Betts: KN18-250FD-M - KD18250FDM
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Temperature Rating: | 105°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Rating: | 10 AMP |
| T: | 0.40mm (0.02") |
| L: | 21.5mm (0.85") |
| F: | 7.5mm (0.30") |
| B: | 11.0mm (0.43") |
| W: | 6.6mm (0.26") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Thomas & Betts: KN18-250FD-M - KD18250FDM
