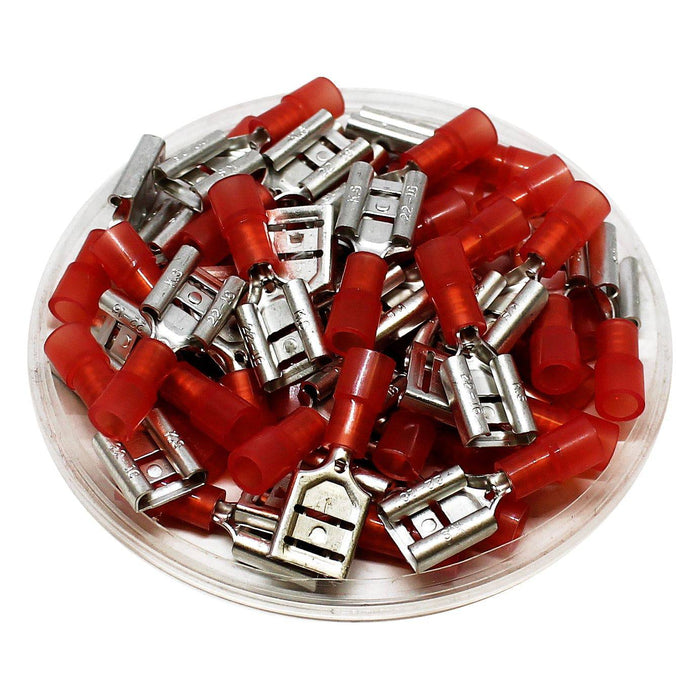

FDNY1-312 - 22-16AWG Female Quick Disconnects - Nylon

$10.75
SKU FDNY1-312
Piece Quantity
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8 x 8mm (0.032 x 0.31")
Temperature Rating: 75°C
Voltage Rating: 300 Volts
Max Electrical Current: 10AMP
T: 0.40mm (0.02")
L: 25.5mm (1.01")
F: 10.0mm (0.39")
B: 11.0mm (0.43")
W: 8.2mm (0.32")
D: 4.0mm (0.16")
C: 1.7mm (0.07")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
