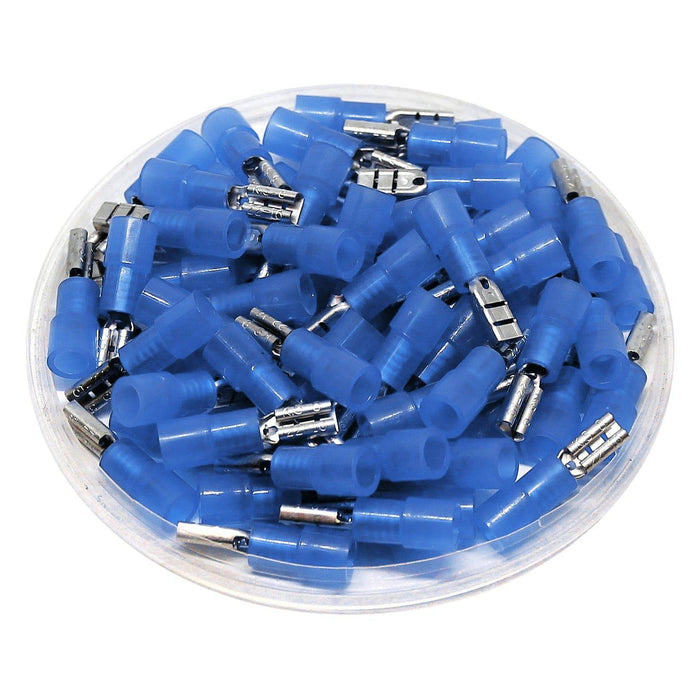

FDNY2-110(8) - 16-14AWG Female Quick Disconnects - Nylon
Original price
$5.12
-
Original price
$5.12
Original price
$5.12
$5.12
-
$5.12
Current price
$5.12
SKU FDNY2-110(8)
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 16-14 AWG |
Color: | Blue |
Terminal Insulation: | Nylon |
Terminal Material: | Tin-Plated Brass |
Nema Tab: | 0.8 x 2.8mm (0.03 x 0.11") |
Temperature Rating: | 105°C |
Voltage Rating: | 300 Volts |
Max Electrical Rating: | 15 AMP |
T: | 0.40mm (0.02") |
L: | 19.6mm (0.77") |
F: | 6.5mm (0.26") |
B: | 11.0mm (0.43") |
W: | 3.2mm (0.13") |
D: | 4.5mm (0.18") |
C: | 2.3mm (0.09") |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Half_Insulated_Female_Disconnectors_Drawing.png?v=1592845209)
Cross References
Cross Reference Parts:None
