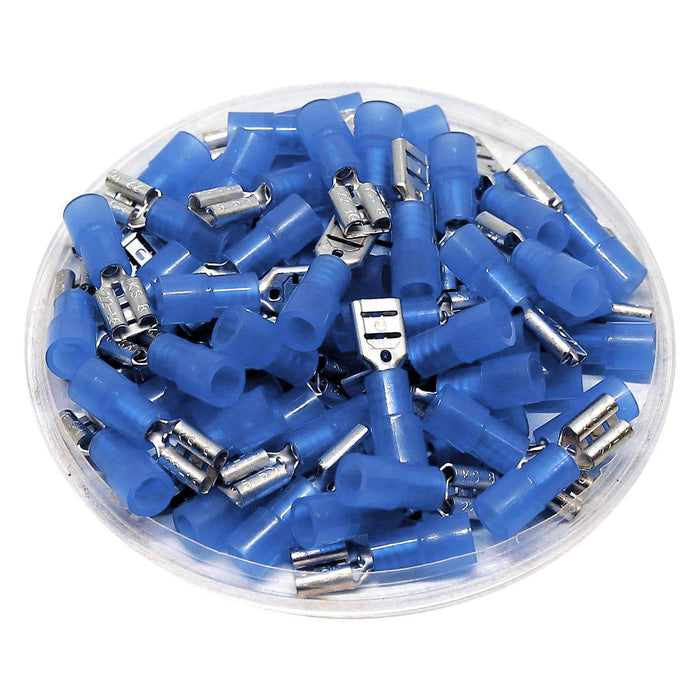

FDNY2-205(8) - 16-14AWG Female Quick Disconnects - Nylon

Original price $7.38 - Original price $7.38
Original price
$7.38
$7.38 - $7.38
Current price $7.38
SKU FDNY2-205(8)
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8 x 5.2mm (0.032 x 0.20")
Temperature Rating: 105°C
Voltage Rating: 300 Volts
Max Electrical Current: 15AMP
T: 0.35mm (0.01")
L: 19.5mm (0.77")
F: 5.8mm (0.228")
B: 11.0mm (0.43")
W: 5.7mm (0.22")
D: 4.5mm (0.18")
C: 2.3mm (0.09")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
