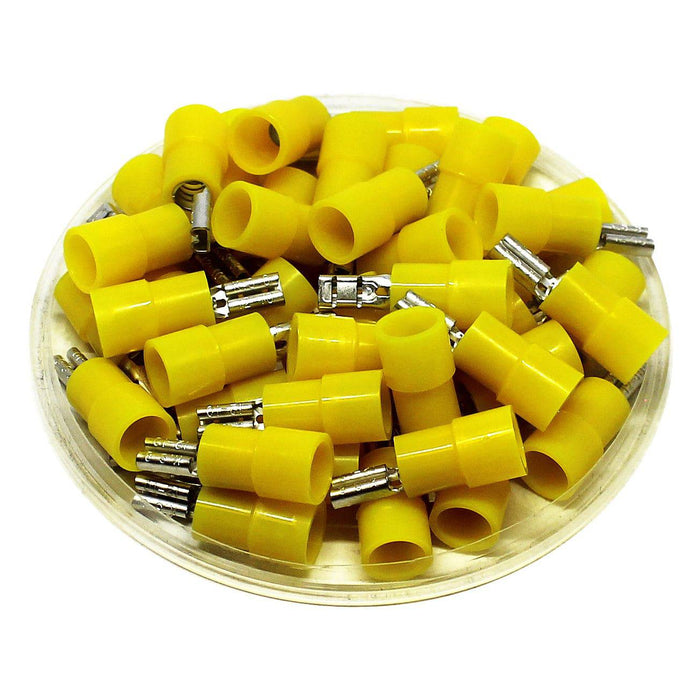

FDNY5-110(8) - 12-10AWG Female Quick Disconnects - Nylon

Original price $9.42 - Original price $9.42
Original price
$9.42 - $9.42
Current price $9.42
SKU FDNY5-110(8)
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8 x 2.8mm (0.032 x 0.11")
Temperature Rating: 75°C
Voltage Rating: 300 Volts
Max Electrical Current: 24AMP
T: 0.35mm (0.01")
L: 22mm (0.87")
F: 6.5mm (0.26")
B: 13.0mm (0.51")
W: 3.2mm (0.13")
D: 6.3mm (0.25")
C: 3.4mm (0.13")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:


Click to view product spec sheet:
