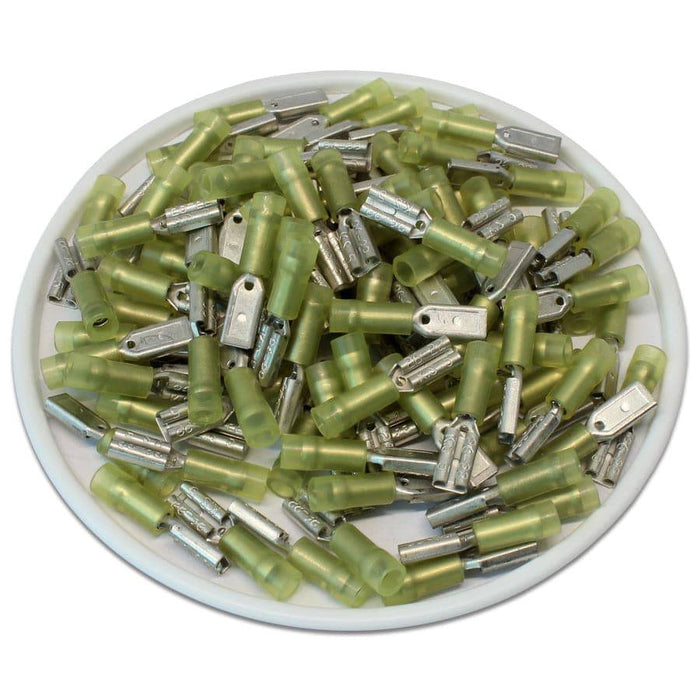

FDNYD05-110(5) - Nylon Insulated Female Quick Disconnect - Double Crimp - 26-22 AWG - Ferrules Direct

FDNYD05-110(5) - Nylon Insulated Female Quick Disconnect - Double Crimp - 26-22 AWG

$0
$8.80 - $8.80
$8.80
$8.80 - $8.80
$8.80
SKU FDNYD05-110(5)

Quantity: 100 Pieces

Availability:
in stock, ready to be shipped
true
 More payment options

Pickup available at 44900 Acacia Lane, Unit 107

Usually ready in 2 hours
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 26-22 AWG
Color: Yellow
L: 16mm (0.63")
F: 6.4mm (0.25")
B: 8.0mm (0.31")
W: 3.3mm (0.13")
D: 3.2mm (0.13")
C: 1.0mm (0.04")
Nema Tab: 0.5 x 2.8mm (0.020 x 0.110")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Nylon
Electrical Rating: 105°C - 600 Volts
Amp Rating: 3AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
