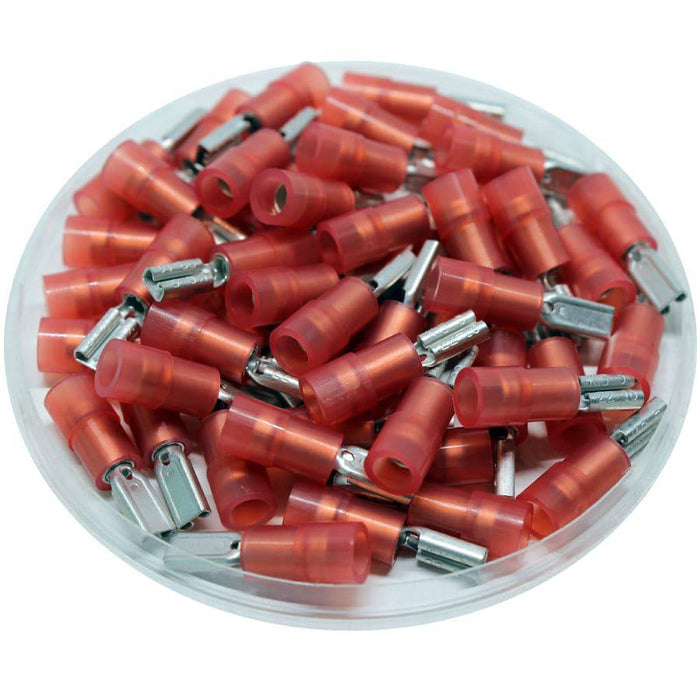

FDNYD1-110(5) - Nylon Insulated Female Quick Disconnect - Double Crimp - 22-16 AWG

Original price $7.75 - Original price $7.75
Original price
$7.75
$7.75 - $7.75
Current price $7.75
SKU FDNYD1-110(5)
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
W: 3.2mm (0.13")
F: 6.5mm (0.25")
L: 19.6mm (0.77")
B: 11mm (0.43")
D: 4.0mm (0.16")
C: 1.7mm (0.07")
Nema Tab: 0.5 x 2.8mm (0.020 x 0.110")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Nylon
Electrical Rating: 105°C - 600 Volts
Amp Rating: 10AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
