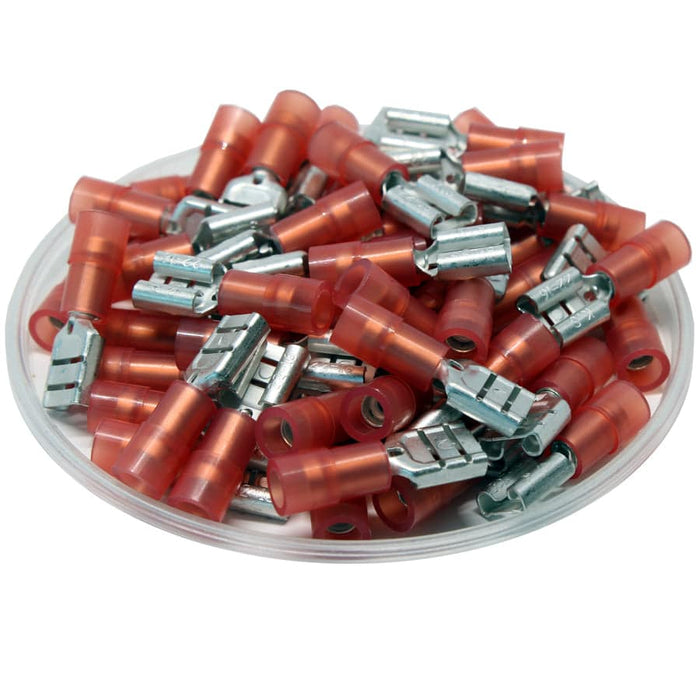

FDNYD1-250 - Nylon Insulated Female Quick Disconnects - Double Crimp - 22-16 AWG

Original price $10.28 - Original price $10.28
Original price
$10.28
$10.28 - $10.28
Current price $10.28
SKU FDNYD1-250
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
W: 6.6mm (0.26")
F: 7.5mm (0.30")
L: 21.5mm (0.85")
B: 11mm (0.43")
D: 4.0mm (0.16")
C: 1.7mm (0.07")
Nema Tab: 0.8 x 6.35mm (0.032 x 0.250")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Nylon
Electrical Rating: 105°C - 600 Volts
Amp Rating: 10AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
