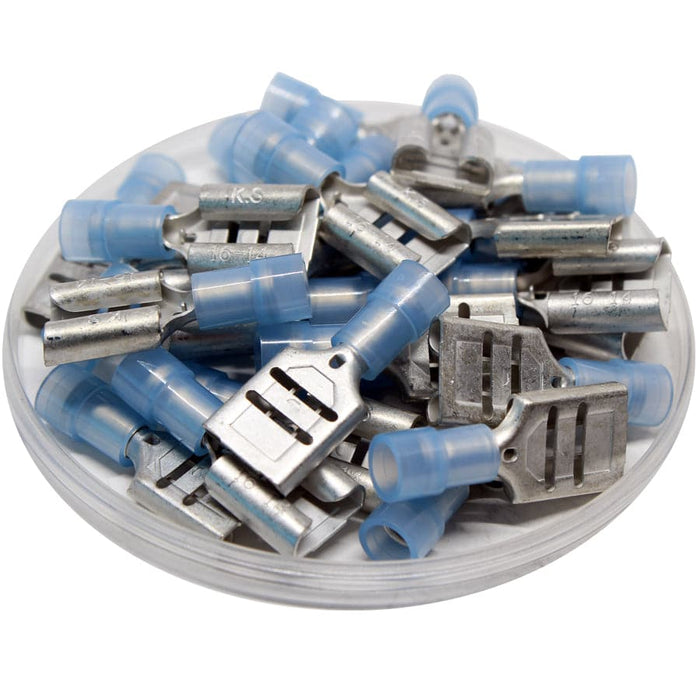

FDNYD2-375 - Nylon Insulated Female Quick Disconnects - Double Crimp - 16-14 AWG

Original price $19.64 - Original price $19.64
Original price
$19.64 - $19.64
Current price $19.64
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection.
  • Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

    Dimensions & Features:

    Wire Size: 16-14 AWG
    Color: Blue
    Insulation Material: Nylon
    Max Electrical Current: 15 AMP
    Terminal Material: Tin-Plated Copper
    Nema Tab: 1.2mm x 9.4mm (0.047" x 0.37")
    Max Electrical Rating: 75°C - 300 Volts
    T: 0.5mm (0.02")
    L: 26.5mm (1.04")
    F: 12.0mm (0.47")
    B: 11.0mm (0.43")
    W: 10.0mm (0.39")
    D: 4.5mm (0.18")
    C: 2.3mm (0.09")
    UL Approved: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:


    Click to view product spec sheet:
