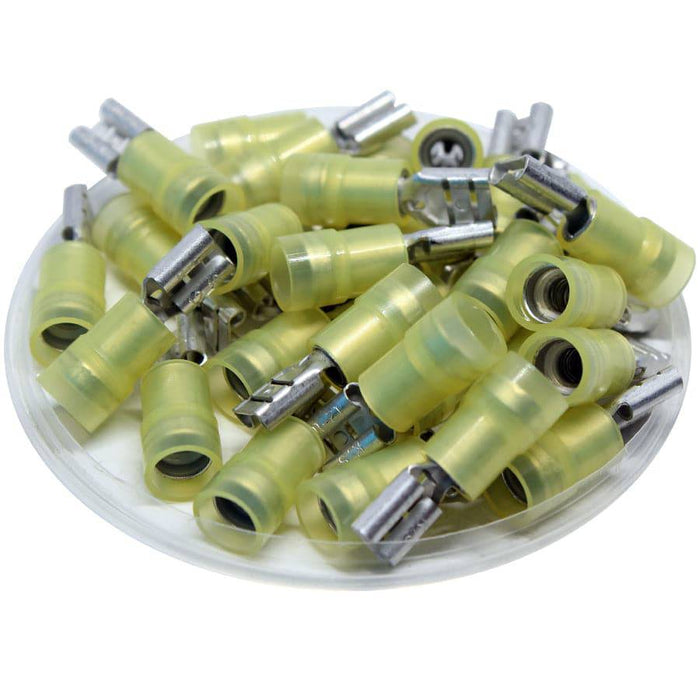

FDNYD5-250 - Nylon Insulated Female Quick Disconnects - Double Crimp - 12-10 AWG

Original price $6.64 - Original price $6.64
Original price
$6.64
$6.64 - $6.64
Current price $6.64
SKU FDNYD5-250
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection.
  • Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.


    Dimensions & Features:

    Wire Size: 12-10 AWG
    Color: Yellow
    Insulation Material: Nylon
    Terminal Material: Tin-Plated Copper
    Nema Tab: 0.8mm x 6.35mm (0.032" x 0.25")
    Max Electrical Rating: 75°C - 600 Volts
    T: 0.4mm (0.02")
    L: 23.5mm (0.90")
    F: 7.5mm (0.30")
    B: 13.0mm (0.51")
    W: 6.6mm (0.26")
    D: 6.3mm (0.25")
    C: 3.4mm (0.13")
    UL Approved: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:


    Cross References

    Cross Reference Parts:
    None

    Documents

    Click to view product spec sheet:
