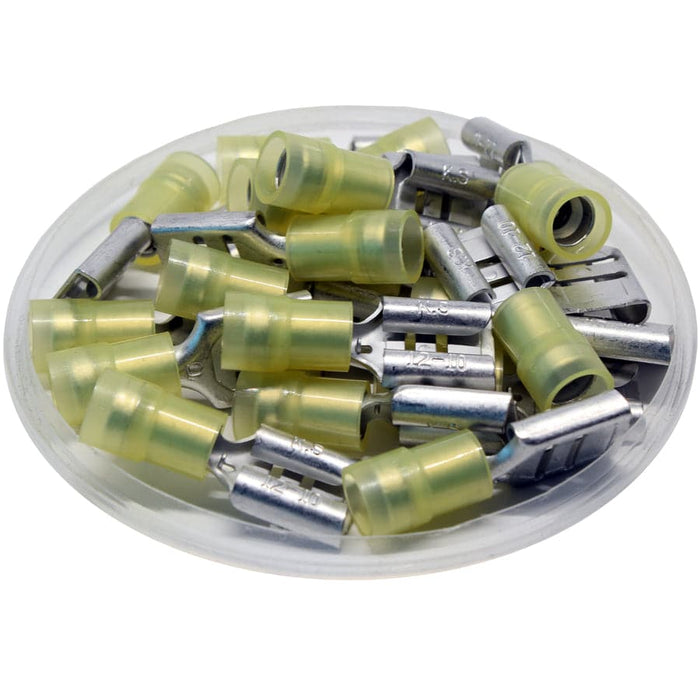

FDNYD5-375 - Nylon Insulated Female Quick Disconnects - Double Crimp - 12-10 AWG
Original price
$27.00
-
Original price
$27.00
Original price
$27.00
$27.00
-
$27.00
Current price
$27.00
SKU FDNYD5-375
Quantity: 50 Pieces
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| T: | 0.5mm (0.02") |
| L: | 28.5mm (1.12") |
| F: | 12mm (0.47") |
| B: | 13mm (0.51") |
| W: | 10mm (0.39") |
| D: | 6.2mm (0.24") |
| C: | 3.4mm (0.13") |
| Material: | Tin Plated Brass |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 24A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
