FDT10042 - Open Barrel Terminals - 22-10AWG - Long Handles

$59.00
SKU FDT10042

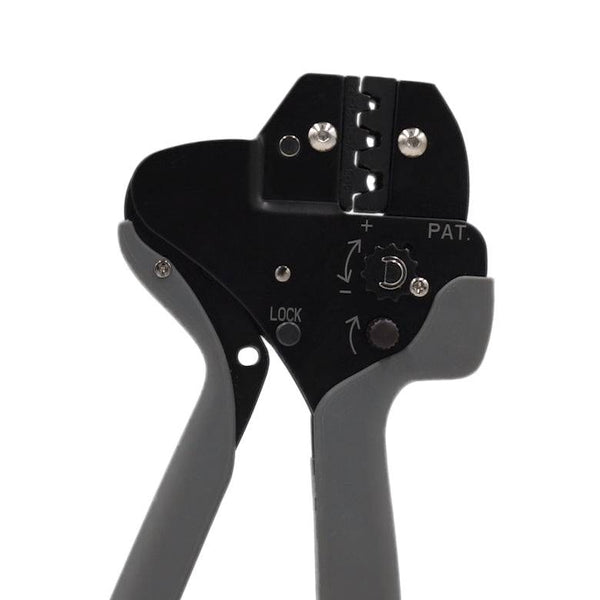

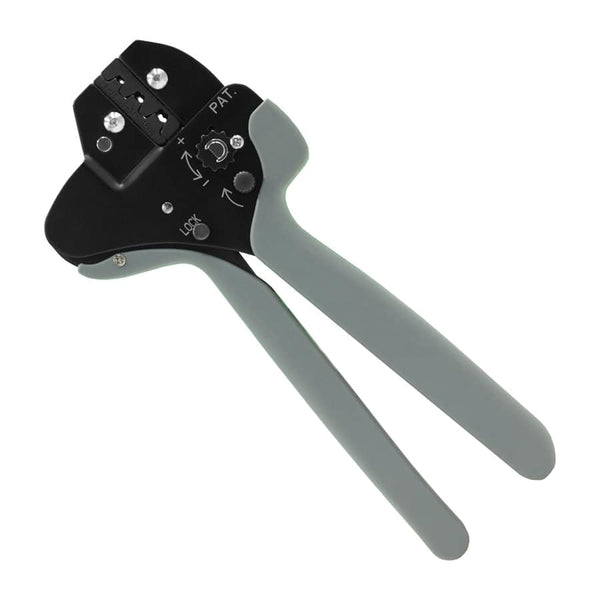

Crimping Tool - Open Barrel Terminals

Description:

  • Long-handle, Vertical-crimping Tool for 22-10 AWG (.50-6 mm²)  Open Barrel Terminals - Quick Disconnects.

Features:

  • Crimping Range: 22-10 AWG (.50-6 mm²) wires
  • Terminals Width: 6.3mm (.25")
  • Crimping Slots:
    • 12-10 (4.00-6.00mm²)
    • 18-14 (1.00-2.50mm²)
    • 22-18 (.50mm-1.00mm²)

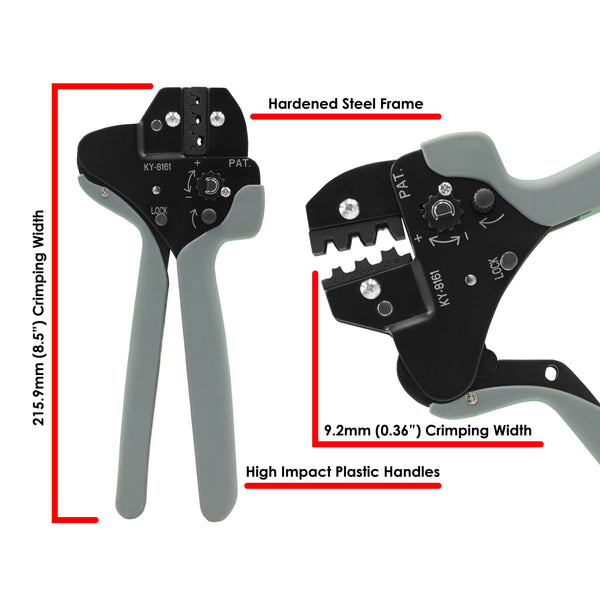

  • Tool's Physical Properties::
    • Body: Hardened Steel
    • Crimping Die: Specially Forged Steel
    • Finish: Burnished
    • Handles: Plastic, ergonomically designed
  • Handles Fully Opened:  Span = 10.6" (27cm.)
  • Crimping Mechanism: Ratchet
