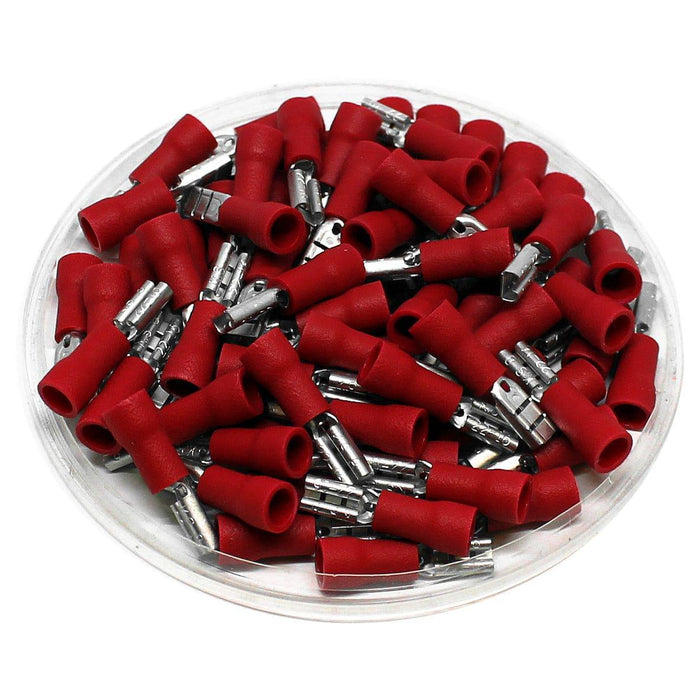

FDV1-110(5) - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Female, Red, Fully Insulated, 100 Pieces
Original price
$3.80
-
Original price
$3.80
Original price
$3.80
$3.80
-
$3.80
Current price
$3.80
SKU FDV1-110(5)
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Color: | Red |
| Nema Tab: | 0.5 x 2.8mm (0.02 x 0.11") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| T: | 0.30mm (0.01") |
| L: | 16.6mm (0.65") |
| F: | 6.5mm (0.25") |
| B: | 10.0mm (0.39") |
| W: | 3.2mm (0.13") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
