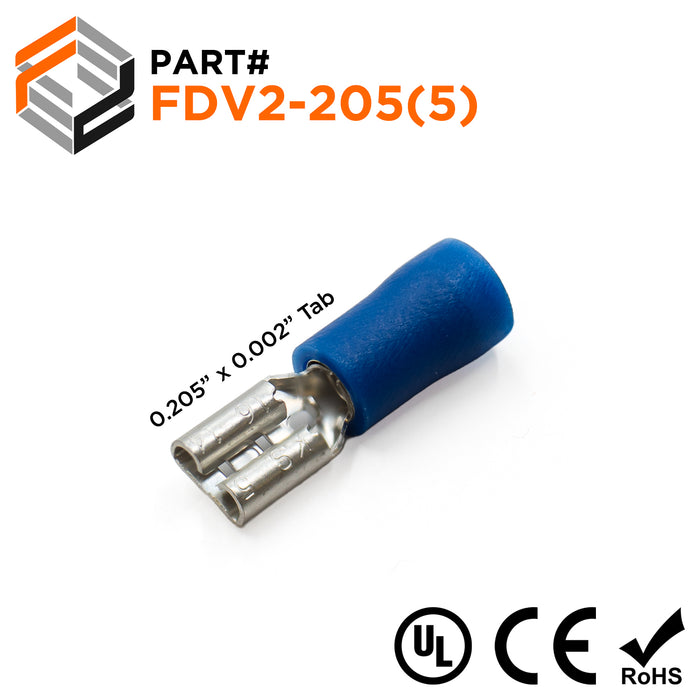

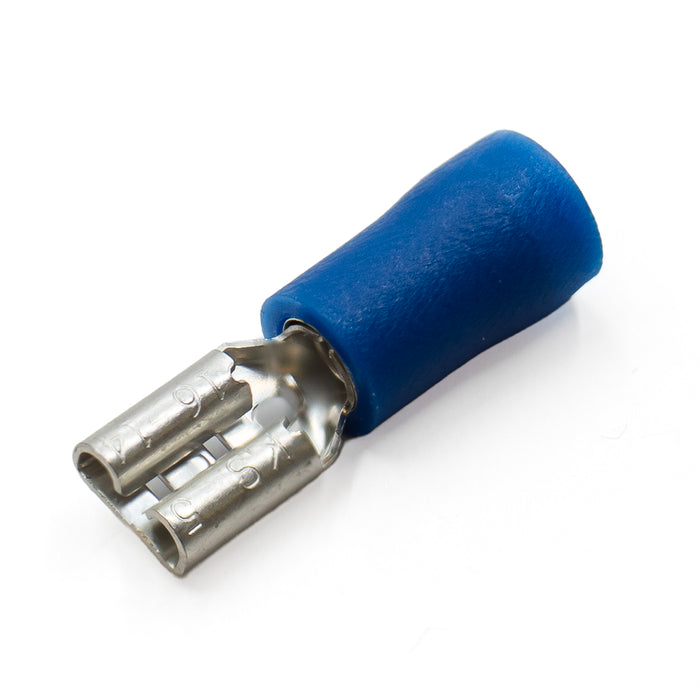

FDV2-205(5) - 16-14AWG Female Quick Disconnects - Vinyl

SKU FDV2-205(5)
Pack Quantity
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 16-14 AWG
Terminal Material: Tin-Plated Brass
Insulation Material: Vinyl
Color: Blue
Nema Tab: 0.5 x 5.2mm (0.02 x 0.20")
Temperature Rating: 75oC
Voltage Rating: 300 Volts
T: 0.35mm (0.01")
L: 18.5mm (0.73")
F: 5.8mm (0.23")
B: 10.0mm (0.39")
W: 5.7mm (0.22")
D: 4.5mm (0.18")
C: 2.3mm (0.03")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:


Click to view product spec sheet:
