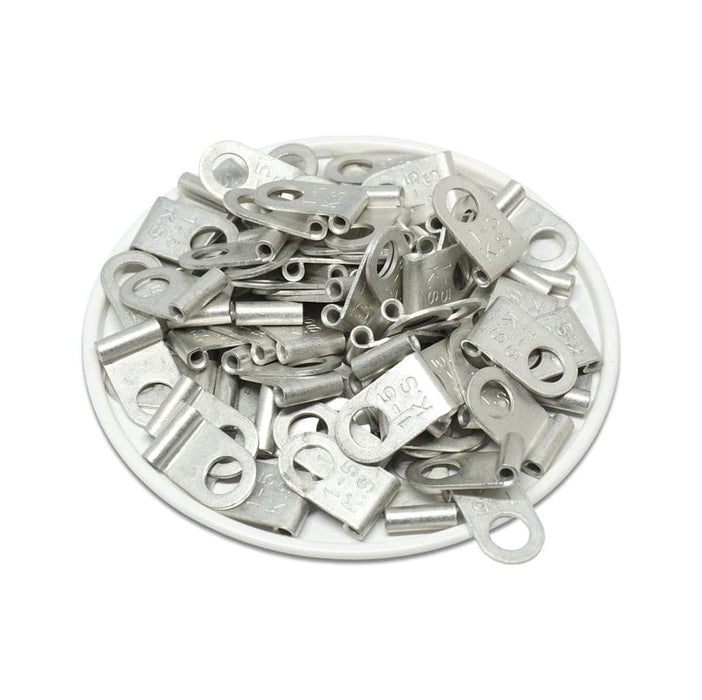

FGNB1-5 - Non Insulated Flag Terminal - Ring Tongue - 22-16AWG
Original price
$21.05
-
Original price
$21.05
Original price
$21.05
$21.05
-
$21.05
Current price
$21.05
SKU FGNB1-5
Availability:
in stock, ready to be shipped

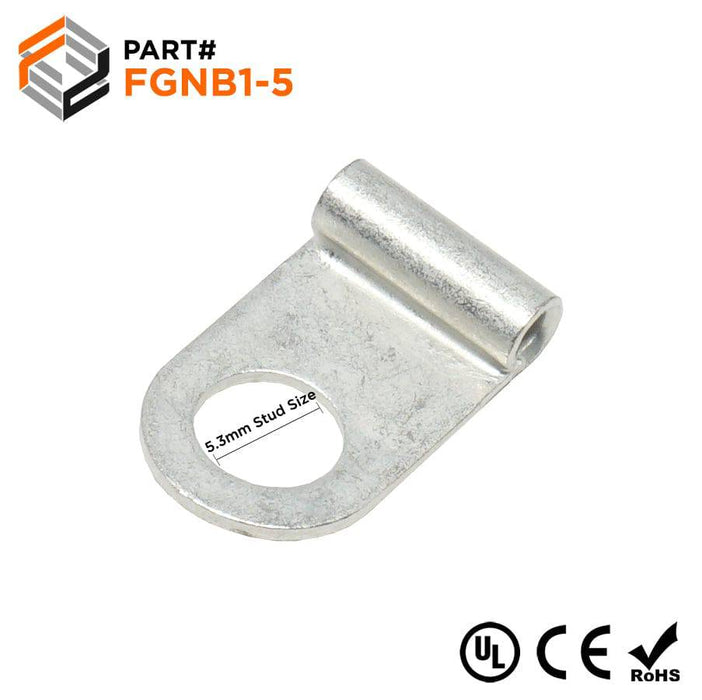

Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
None
McMaster-Carr: 73125K63
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #10 |
| T: | 0.75mm (0.13") |
| L: | 16.3mm (0.64") |
| F: | 8.0mm (0.31") |
| W: | 9.6mm (0.37") |
| D: | 3.4mm (0.13") |
| D1: | 1.7mm (0.06") |
| D2: | 5.3mm (0.21") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
McMaster-Carr: 73125K63
