FGNB14-8 - Non Insulated Flag Terminal - Ring Tongue - 6AWG
Original price
$12.96
-
Original price
$12.96
Original price
$12.96
$12.96
-
$12.96
Current price
$12.96
SKU FGNB14-8
Quantity: 10 Pieces
Availability:
in stock, ready to be shipped

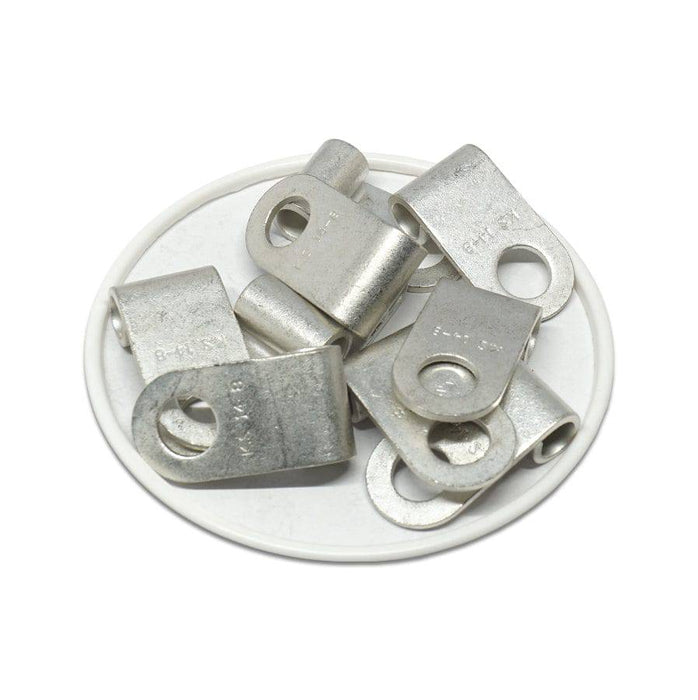

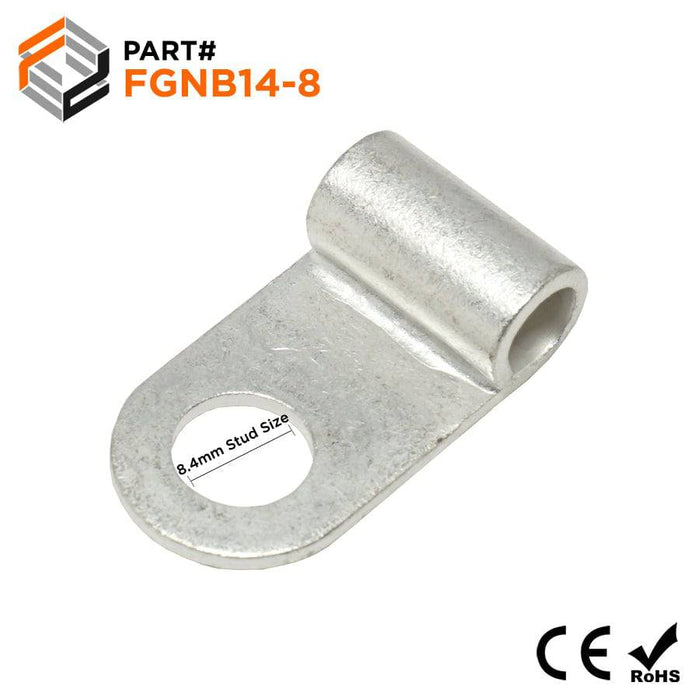

Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
Burndy: YBM6C-L2
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 5/16" |
| T: | 1.5mm (0.08") |
| L: | 30.5mm (1.20)") |
| F: | 13.5mm (0.53") |
| W: | 16.0mm (0.63") |
| D: | 9.0mm (0.35") |
| D1: | 5.8mm (0.22") |
| D2: | 8.4mm (0.33") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy: YBM6C-L2
