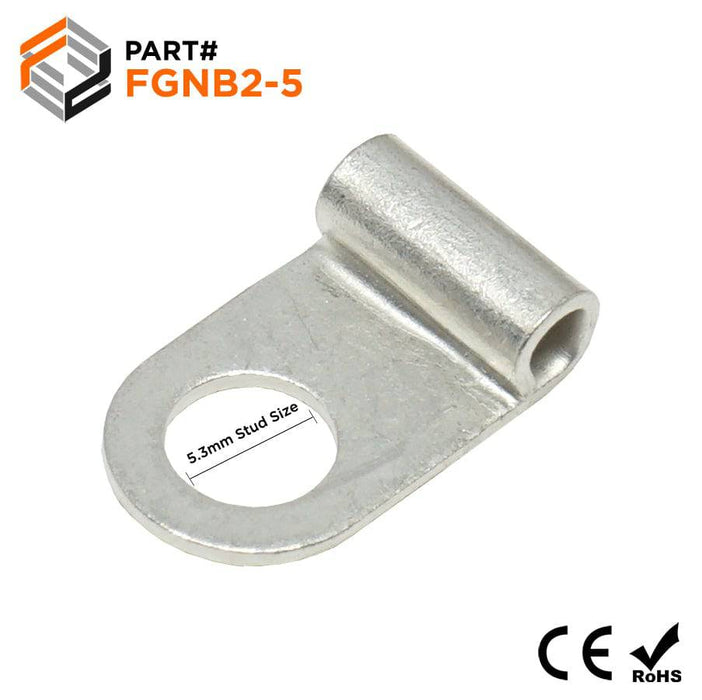

FGNB2-5 - Non Insulated Flag Terminal - Ring Tongue - 16-14AWG

Original price $23.12 - Original price $23.12
Original price
$23.12
$23.12 - $23.12
Current price $23.12
SKU FGNB2-5
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces

PRODUCT DESCRIPTION

Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor.

DIMENSIONS AND FEATURES
T: 0.8mm (0.03") Wire Range: 16-14 AWG
L: 16.3mm (0.64") Stud Size: #10
F: 7.3mm (0.28") Temperature Rating: 105oC
W: 9.6mm (0.37") Material: Tin-Plated Copper
D: 4.1mm (0.16") Electrical Rating: 105oC 600 Volt
D1: 2.3mm (0.09") RoHS Compliant: Yes
D2: 5.3mm (0.21") CE Certified: Yes

TECHNICAL DRAWING

Cross Reference Parts:

McMaster-Carr: 73125K66
