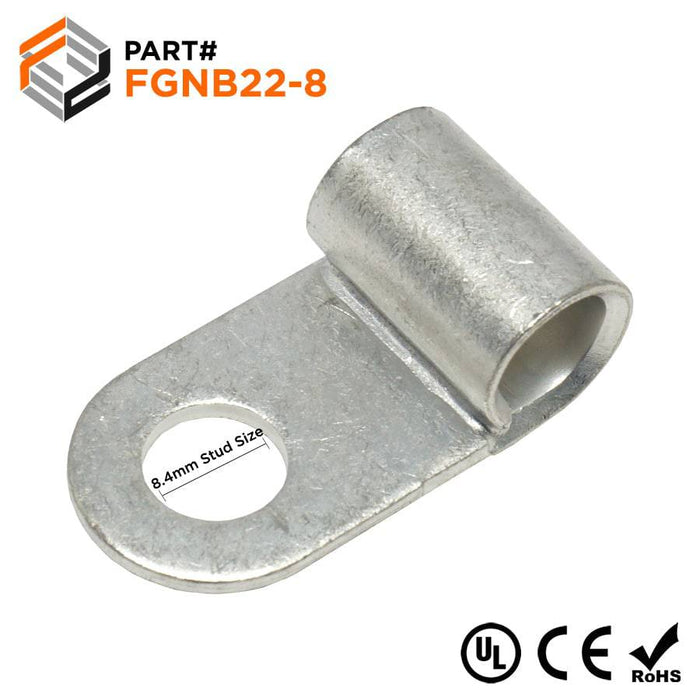

FGNB22-8 - Non Insulated Flag Terminal - Ring Tongue - 4AWG
Original price
$21.52
-
Original price
$21.52
Original price
$21.52
$21.52
-
$21.52
Current price
$21.52
SKU FGNB22-8

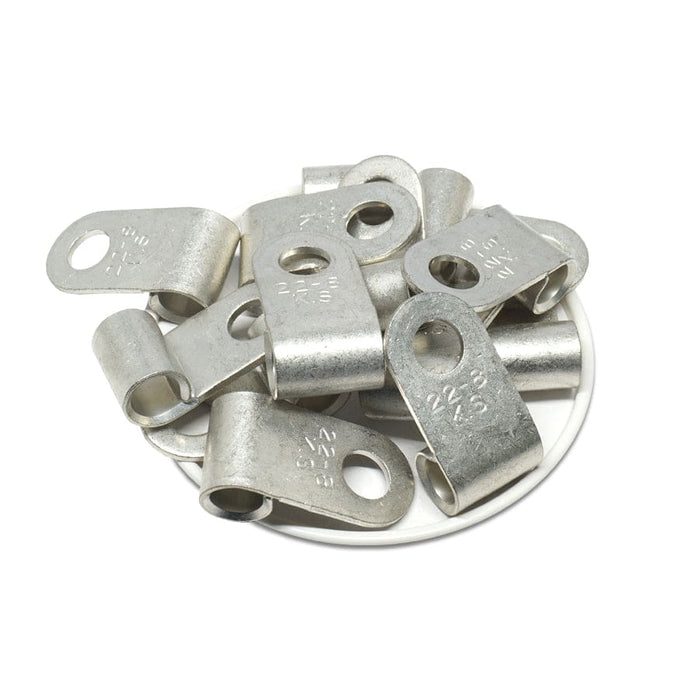

Quantity: 10 Pieces
Availability:
in stock, ready to be shipped
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4 AWG |
| Stud Size: | 5/16" |
| T: | 1.7mm (0.07") |
| L: | 34.0mm (1.34)") |
| F: | 13.8mm (0.54") |
| W: | 17.5mm (0.69") |
| D: | 11.5mm (0.45") |
| D1: | 7.7mm (0.30") |
| D2: | 8.4mm (0.25") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
