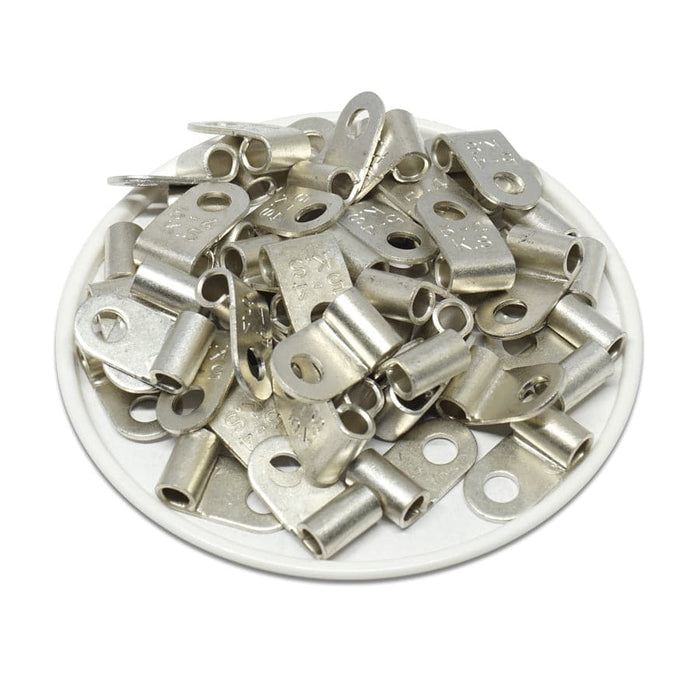

12-10 AWG Non Insulated 90° Flag Terminals, #8 Stud, 50 Pieces - FGNB5-4
Original price
$0.00
-
Original price
$19.70
Original price
$19.70
$0.00
-
$19.70
Current price
$19.70
SKU FGNB5-4
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
Tyco AMP: 36271
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 |
| T: | 1.0mm (0.03") |
| L: | 17.8mm (0.70") |
| F: | 7.4mm (0.29") |
| W: | 9.6mm (0.37") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 4.3mm (0.16") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts: McMaster-Carr: 73125K68Tyco AMP: 36271
