8 AWG Non Insulated Flag Terminals, 3/8" Stud Size, Ring Tongue, 25 Pieces - FGNB8-10

Original price $0.00 - Original price $27.90
Original price
$27.90
$0.00 - $27.90
Current price $27.90
SKU FGNB8-10
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Piece Quantity: 25 Pieces
true

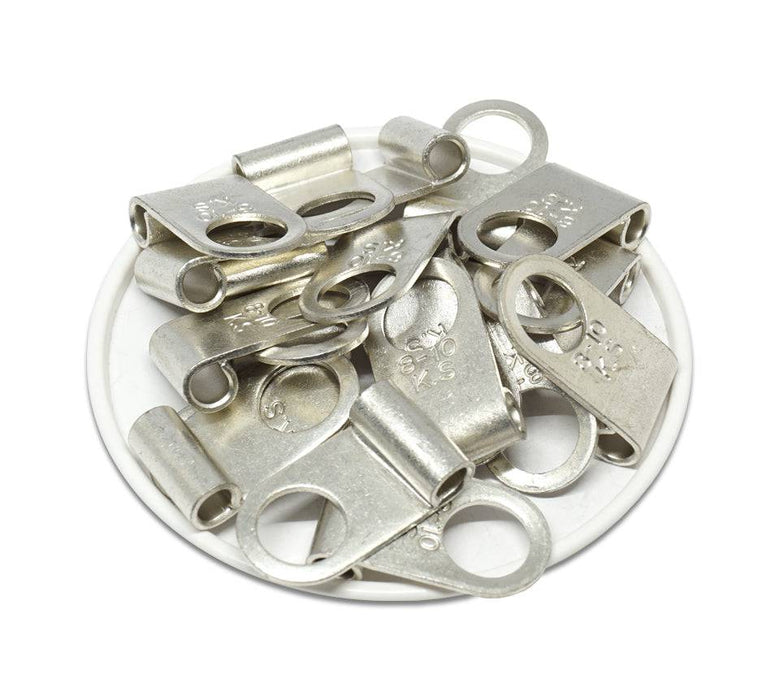

NON INSULATED FLAG TERMINALS "RING TONGUE TERMINALS"

Non-insulated flag terminals, also known as ring tongue terminals, enable the user to create a 90° connection without bending the conductor. Made of tin plated copper and available in a wide variety of size options.

Dimensions & Features:

Wire Size: 8 AWG
Stud Size: 3/8"
T: 1.2mm (0.04")
L: 28.3mm (1.11")
F: 13.1mm (0.51")
W: 15.5mm (0.61")
D: 7.2mm (0.28")
D1: 4.5mm (0.17")
D2: 10.5mm (0.41")
Material: Tin-Plated Copper
Temperature Rating: 105oC
Volt Rating: 600 Volts
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:



Videos

Check out our YouTube channel!


COMPARE TO THESE PARTS:
