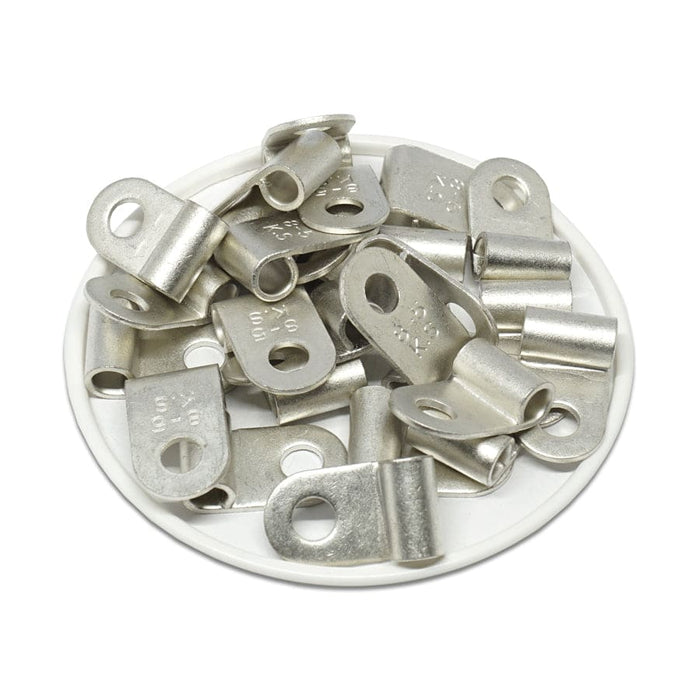

FGNB8-5 - Non Insulated Flag Terminal - Ring Tongue - 8AWG
Original price
$21.28
-
Original price
$21.28
Original price
$21.28
$21.28
-
$21.28
Current price
$21.28
SKU FGNB8-5
Quantity: 25 Pieces
Availability:
in stock, ready to be shipped
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | #10 |
| T: | 1.2mm (0.04") |
| L: | 23.0mm (0.91") |
| F: | 9.1mm (0.30") |
| W: | 12.7mm (0.50") |
| D: | 7.2mm (0.28") |
| D1: | 4.5mm (0.17") |
| D2: | 5.3mm (0.21") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
