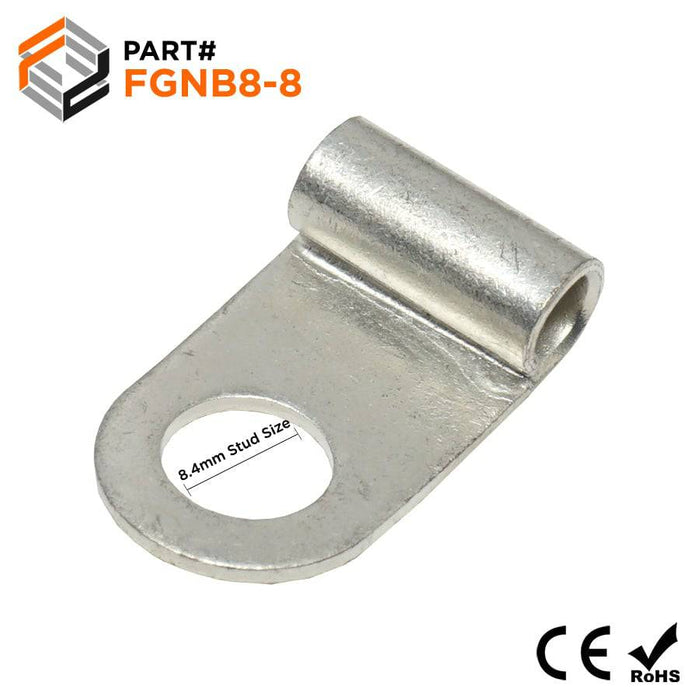

FGNB8-8 - Non Insulated Flag Terminal - Ring Tongue - 8AWG
Original price
$27.90
-
Original price
$27.90
Original price
$27.90
$27.90
-
$27.90
Current price
$27.90
SKU FGNB8-8
Availability:
in stock, ready to be shipped
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 5/16" |
| D: | 7.2mm (0.26") |
| D1: | 4.5mm (0.17") |
| T: | 1.2mm (0.04") |
| L: | 28.3mm (1.11") |
| F: | 13.1mm (0.51") |
| W: | 15.5mm (0.61") |
| D2: | 8.4mm (0.31") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
