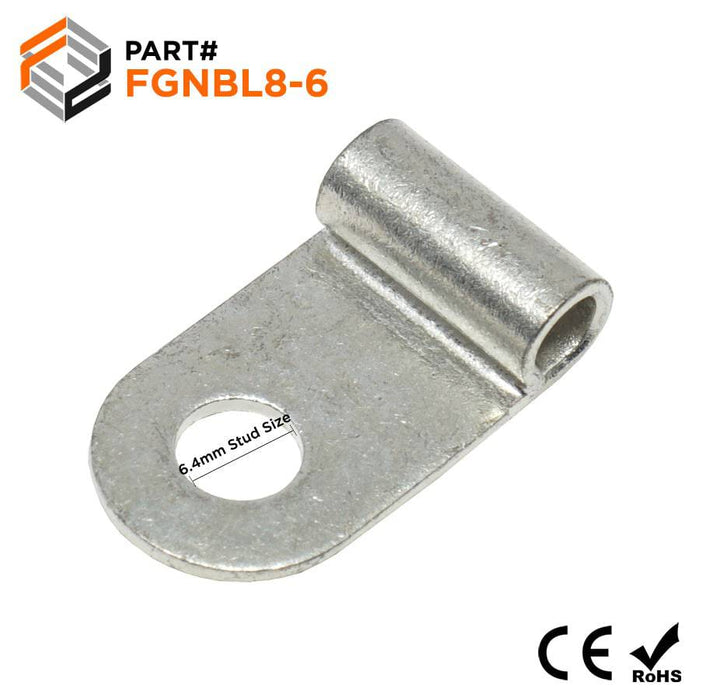

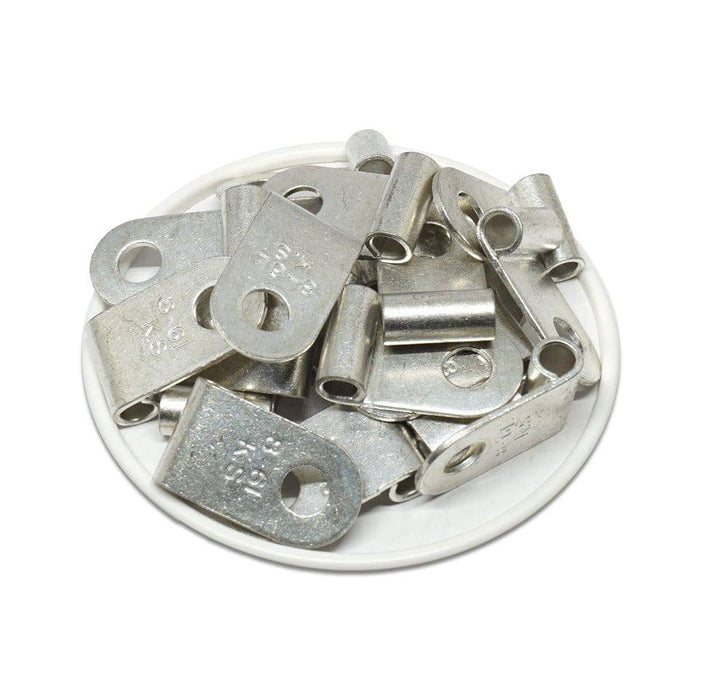

FGNBL8-6 - 8 AWG Non Insulated Flag Ring Terminals, Ring Tongue, 1/4" Stud, Long Length, 25 Pieces
Original price
$33.78
-
Original price
$33.78
Original price
$33.78
$33.78
-
$33.78
Current price
$33.78
SKU FGNBL8-6
Quantity: 25 Pieces
Availability:
in stock, ready to be shipped
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 1/4" |
| D: | 7.2mm (0.283") |
| D1: | 4.5mm (0.17") |
| T: | 1.2mm (0.04") |
| L: | 28.3mm (1.14") |
| F: | 13.1mm (0.516") |
| W: | 15.5mm (0.610") |
| D2: | 6.4mm (0.25") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
