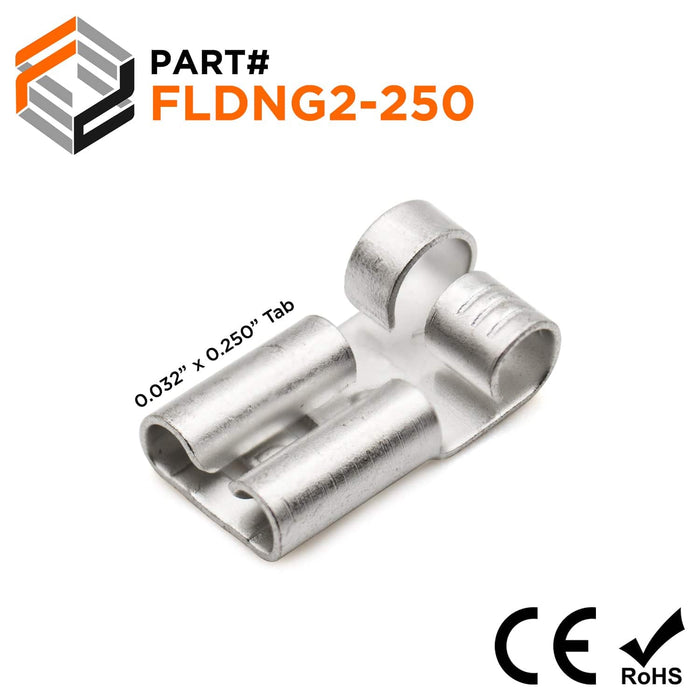

FLDNG2-250 - Non Insulated Flag Terminal Quick Disconnect - 16-14 AWG - 100/pack

Original price $5.73 - Original price $5.73
Original price
$5.73
$5.73 - $5.73
Current price $5.73
SKU FLDNG2-250
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Non insulated flag quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.

Dimensions & Features:

Wire Size: 16-14 AWG
L: 15.0mm (.591")
F: 7.8mm (0.307")
W: 6.6mm (0.260")
B: 9.3mm (0.366")
Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
Material: Tin Plated Brass
Max Electrical Current: 15A
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
