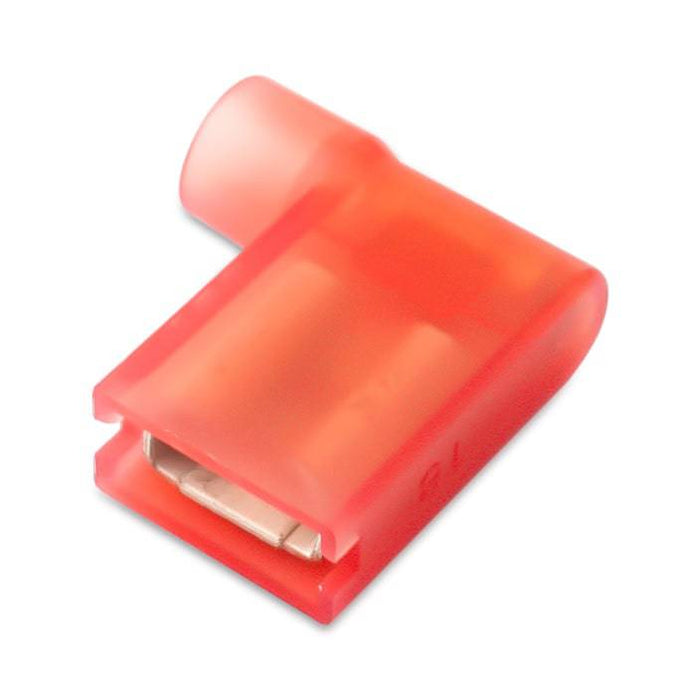

FLDNY1-187(8)A Nylon Insulated Flag Quick Disconnect - 22-16 AWG
Original price
$15.08
-
Original price
$15.08
Original price
$15.08
$15.08
-
$15.08
Current price
$15.08
SKU FLDNY1-187(8)A
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Material: | Brass |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 300 Volts |
| Max Electrical Current: | 10 AMP |
| W: | 5.0mm (0.19") |
| F: | 7.0mm (0.27") |
| L: | 15.0mm (0.59") |
| D1: | 1.6mm (0.06") |
| T: | 0.4mm (0.01") |
| Nema Tab: | 0.8 x 4.75mm (0.03 x 0.18") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
