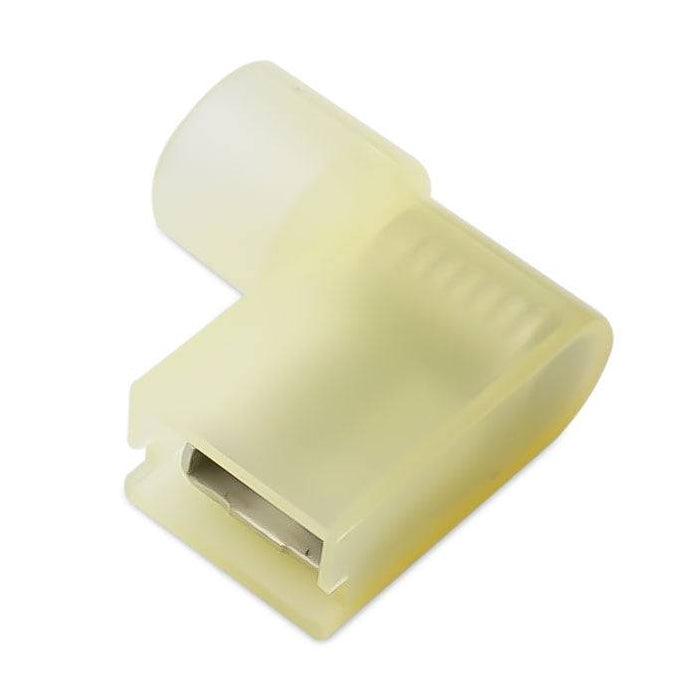

FLDNY5-250 - Nylon Insulated Flag Quick Disconnect - 12-10 AWG

Sold out
Pack Quantity
A flat blade terminal is a type of wire connection using a flat conductive blade which is inserted into a blade receptacle. They are designed to match interconnect requirements for components such as timers, valves, relays, mechanical switches, and wire-to-wire connections.

Dimensions & Features:

Wire Size: 12-10 AWG
Temperature Rating: 105°C - 300 Volts
Terminal Material: Brass
Insulation Material: Nylon
Color: Yellow
Crimp: Standard
NEMA Tab: 0.8mm x 6.35mm (0.03" x 0.25")
L: 16.5mm (0.65")
F: 7.6mm (0.30")
W: 6.6mm (0.26")
T: 0.45mm (0.02")
D1: 3.4mm (0.13")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Leidos: 20-72097
Molex: 19007-0040 - 19007-0041 - 19007-0053
Newark: 62M3162
