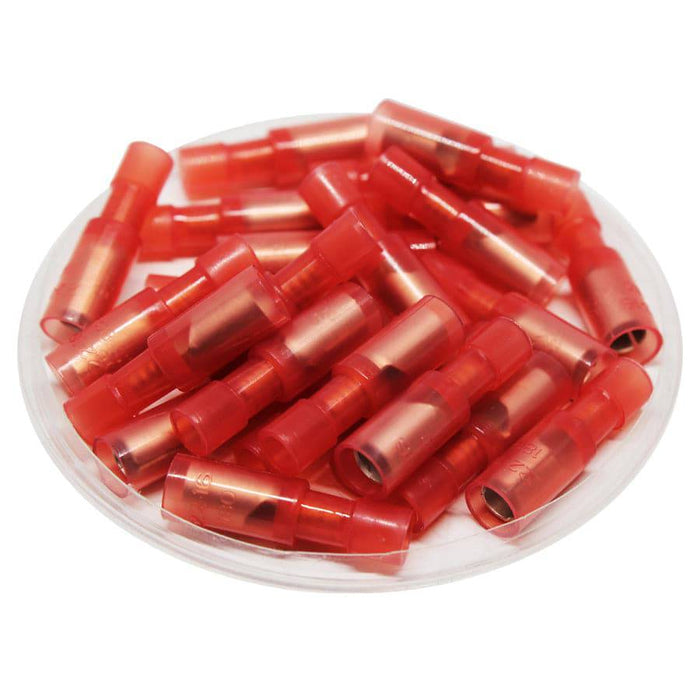

FRFNY1-156 - 22 to 16 AWG Nylon Insulated Female Bullet Connectors, Fully Insulated, Red, 100 Pieces
Sold out
Original price
$10.95
-
Original price
$10.95
Original price
$10.95
$10.95
-
$10.95
Current price
$10.95
SKU FRFNY1-156
Quantity: 100 Pieces
Availability:
Out of stock
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| W: | 3.9mm (0.154") |
| F: | 7.0mm (0.276") |
| L: | 25.2mm (0.992") |
| B: | 11.0mm (0.433") |
| D: | 4.0mm (0.157") |
| C: | 1.7mm (0.07") |
| T: | 0.4mm (0.016") |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Red |
| Temperature Rating: | 105°C - 600 Volts |
| Max AMP Rating: | 10 AMP |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
