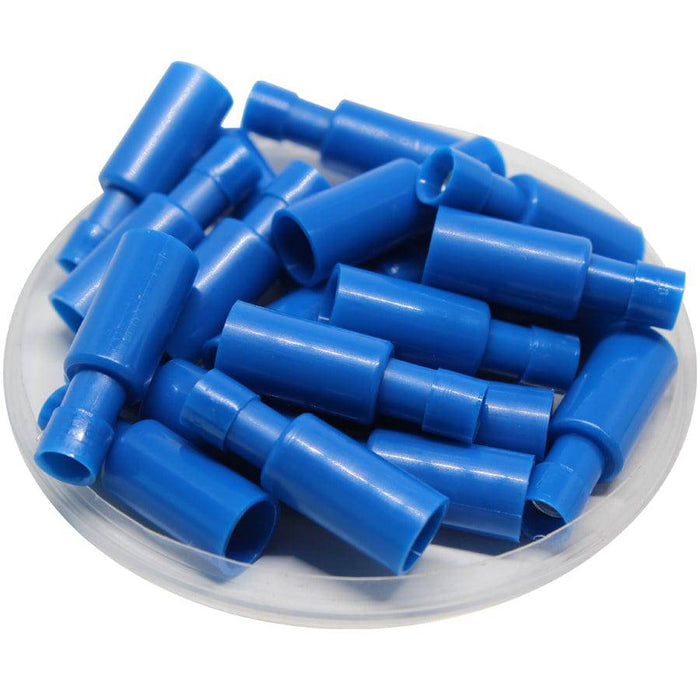

FRFNYD2-195 - Nylon Fully Insulated Female Bullet Connector - Double Crimp - 16-14 AWG
Original price
$15.30
-
Original price
$15.30
Original price
$15.30
$15.30
-
$15.30
Current price
$15.30
SKU FRFNYD2-195
Availability:
in stock, ready to be shipped
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals are built with an additional inner copper barrel which:
Substantially reduces the strain on the wire strands.
Transfers strain to the wire jacket.
Provides a stronger connection.
Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| W: | 0.19" (4.9mm) |
| F: | 0.27" (7.0mm) |
| L: | 1.04" (26.5mm) |
| B: | 0.43" (11.0mm) |
| D: | 0.17" (4.5mm) |
| C: | 0.01" (0.4mm) |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Blue |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 15 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
