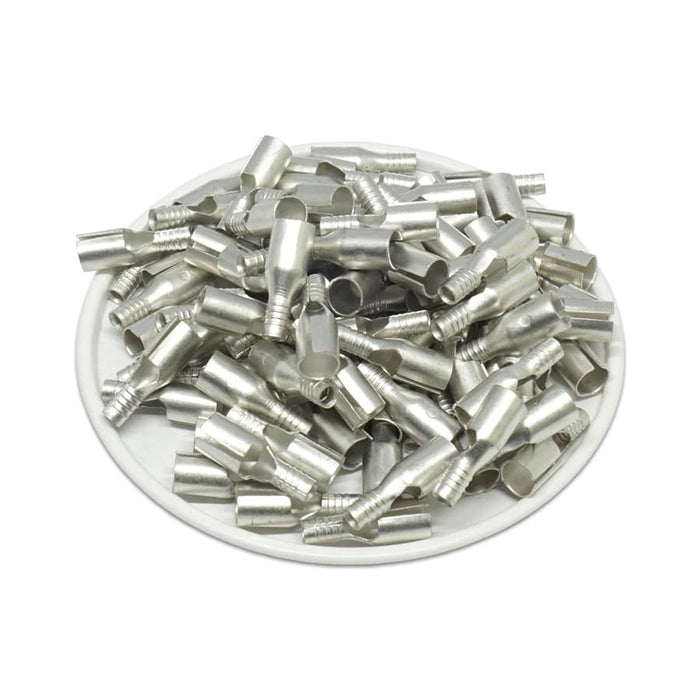

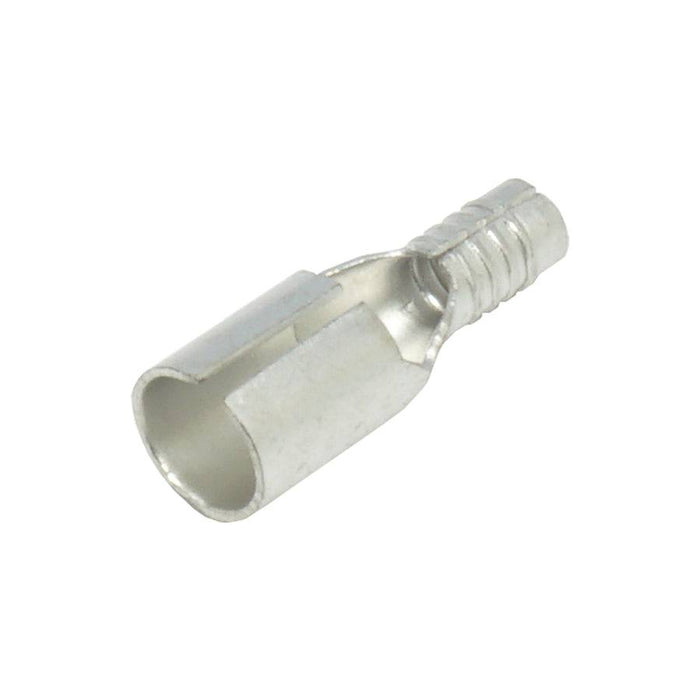

FRN2-195 - Non Insulated Female Bullet Connectors - 16-14 AWG

Original price $4.78 - Original price $4.78
Original price
$4.78
$4.78 - $4.78
Current price $4.78
SKU FRN2-195
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Tin-plated brass male and female non insulated bullet connectors fit to form a full in-line splice that helps prevent shorting or flash-over when disconnected with the power on.

Wire Range: 16-14 AWG
L: 0.65" (16.5mm)
F: 0.27" (7.0mm)
E: 0.20" (5.0mm)
W: 0.20" (5.0mm)
C: 0.09" (2.3mm)
Terminal Material: Brass
Surface Material: Tin-Plated
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!

COMPARE TO THESE PARTS:
