FRSD1-156 - Vinyl Insulated Female Double Crimp Bullet Connectors - 22-16 AWG - Ferrules Direct

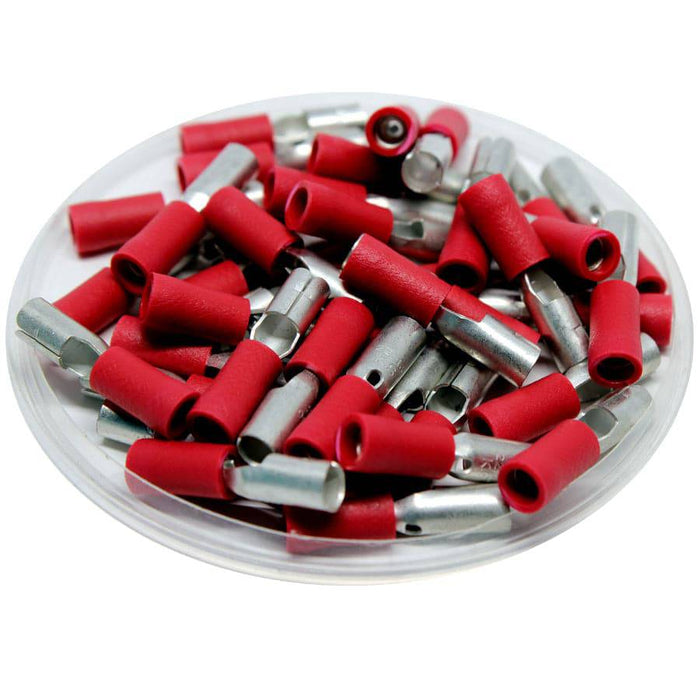

FRSD1-156 - Vinyl Insulated Female Double Crimp Bullet Connectors - 22-16 AWG

$9.94 - $9.94
$9.94
$9.94 - $9.94
$9.94
SKU FRSD1-156
Availability:
in stock, ready to be shipped
true
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection.
    • Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

    Wire Range: 22-16 AWG
    C: 0.07" (1.7mm)
    L: 0.89" (22.5mm)
    F: 0.28" (7.0mm)
    B: 0.43" (11.0mm)
    W: 0.15" (3.9mm)
    D: 0.16" (4.0mm)
    Terminal Material: Tin-Plated Brass
    Insulation Material: Vinyl
    Insulation Color: Red
    Temperature Rating: 105oC - 600 Volts
    Max AMP Rating: 10 AMP
    UL Recgonized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:
    None:
