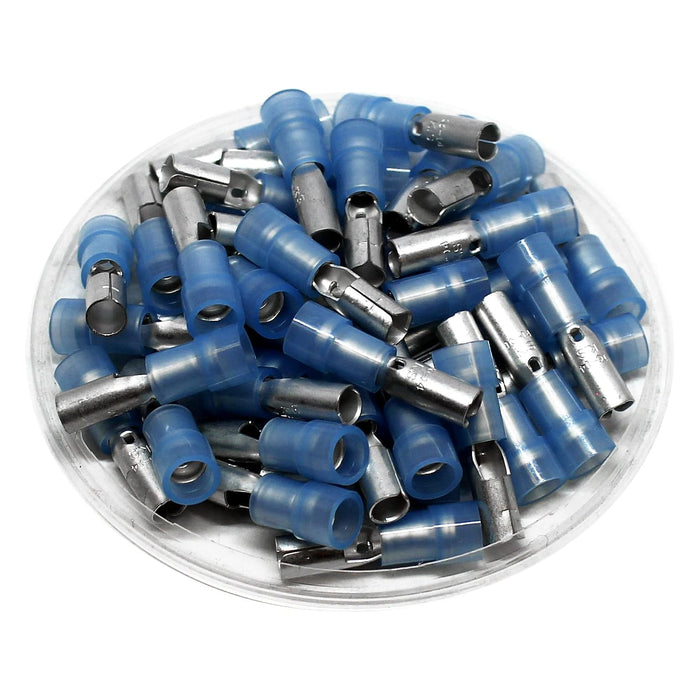

FRSNY2-156 - Nylon Insulated Female Bullet Connectors - 16-14 AWG
Original price
$12.77
-
Original price
$12.77
Original price
$12.77
$12.77
-
$12.77
Current price
$12.77
SKU FRSNY2-156
Availability:
in stock, ready to be shipped
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| C: | 0.09" (2.3mm) |
| L: | 0.89" (22.5mm) |
| F: | 0.28" (7.0mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.15" (3.9mm) |
| D: | 0.20" (5.0mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Blue |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 15 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
