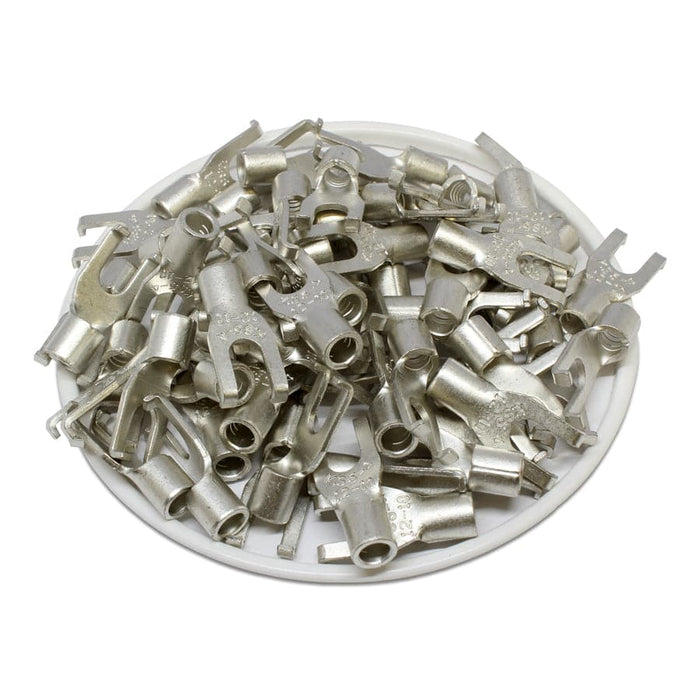

12-10 AWG Non Insulated Flange Spade Terminals, #8 Stud, UL Approved, 100 Pieces - FSNB5-4
Original price
$20.42
-
Original price
$20.42
Original price
$20.42
$20.42
-
$20.42
Current price
$20.42
SKU FSNB5-4
Availability:
in stock, ready to be shipped
NON INSULATED SPADE TERMINALS
Non insulated flange spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Seam: | Brazed |
| Stud Size: | #8 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 20.0mm (0.79") |
| F: | 7.5mm (0.30") |
| E: | 6.0mm (0.24") |
| W: | 8.5mm (0.34") |
| A: | 1.5mm (0.06") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 4.3mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
