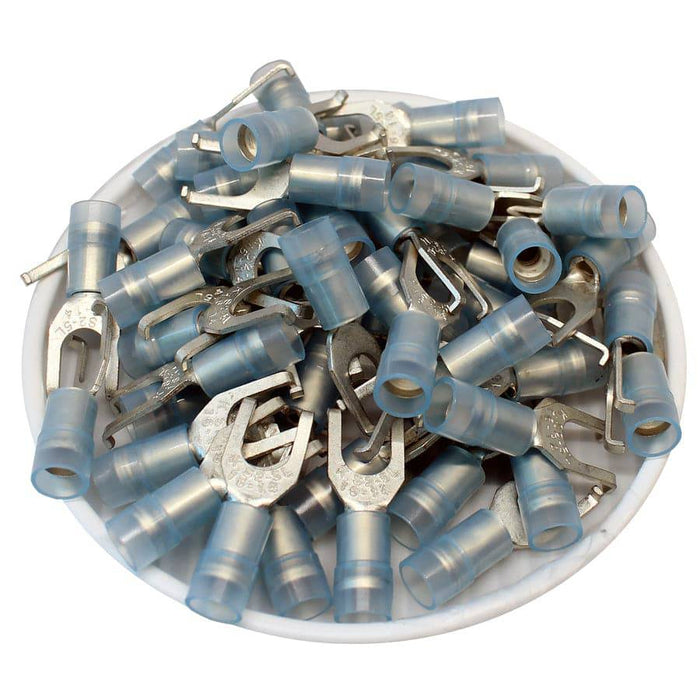

FSNYD2-5 - Nylon Flange Spade Terminal Double Crimp - 16-14 AWG - Blue

Original price $18.47 - Original price $18.47
Original price
$18.47
$18.47 - $18.47
Current price $18.47
SKU FSNYD2-5
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10 Stud
Color: Blue
T: 0.8mm (0.03")
L: 20.5mm (0.81")
F: 5.2mm (0.21")
E: 11mm (0.43")
W: 7.5mm (0.30")
A: 1.5mm (0.06")
D: 4.5mm (0.18")
D1: 2.3mm (0.09")
D2: 5.3mm (0.21")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 30A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None
