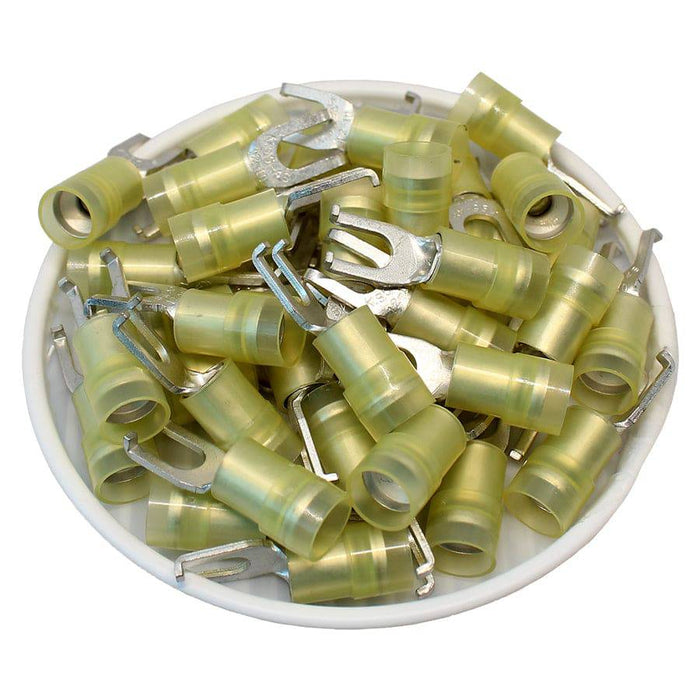

FSNYD5-5 - Nylon Flange Spade Terminal Double Crimp - 12-10 AWG - Yellow

Original price $37.01 - Original price $37.01
Original price
$37.01
$37.01 - $37.01
Current price $37.01
SKU FSNYD5-5
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: #10 Stud
Color: Yellow
T: 1mm (0.04")
L: 27mm (1.1")
F: 7.5mm (0.29")
E: 13mm (0.51")
W: 8.5mm (0.34")
A: 1.5mm (0.06")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
D2: 5.3mm (0.21")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 50A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
