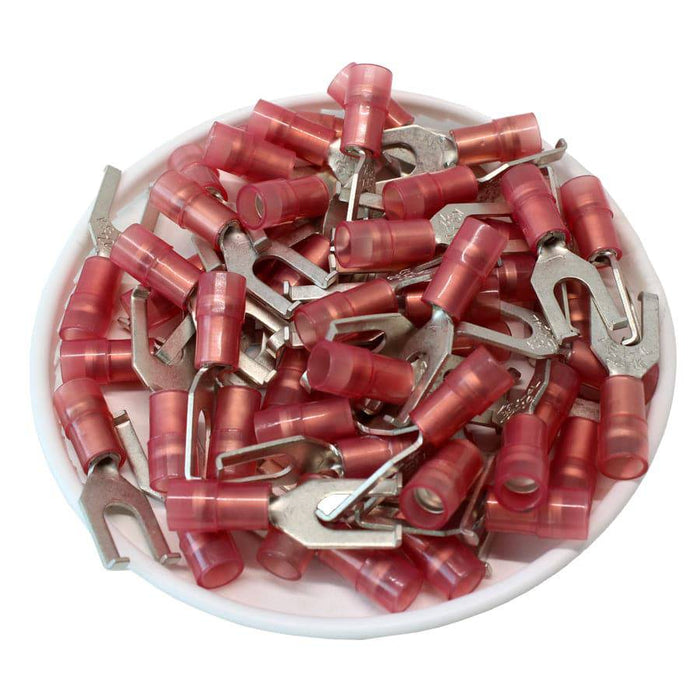

FSNYDL1-4 - Nylon Flange Spade Terminal Double Crimp - 22-16 AWG - Red
Original price
$20.17
-
Original price
$20.17
Original price
$20.17
$20.17
-
$20.17
Current price
$20.17
SKU FSNYDL1-4
Availability:
in stock, ready to be shipped
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #6 Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 25.5mm (1.0") |
| F: | 7.2mm (0.28") |
| E: | 11mm (0.43") |
| W: | 8.5mm (0.34") |
| A: | 1.5mm (0.06") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 4.3mm (0.17") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 18A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
