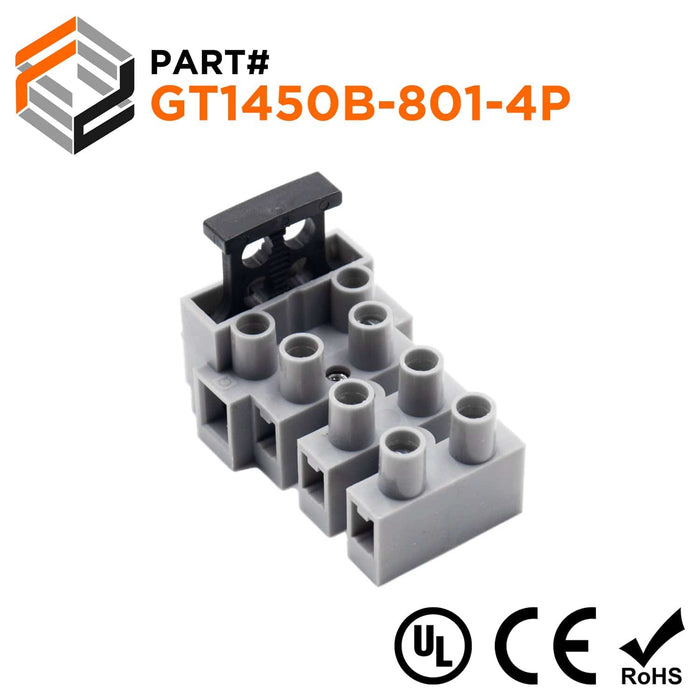

GT1450B-801-4P - Terminal Strip, 4 Poles, 10mm Pitch, UL Recognized, 1 Piece
Original price
$1.84
-
Original price
$1.84
Original price
$1.84
$1.84
-
$1.84
Current price
$1.84
SKU GT1450B-801-4P
Quantity: 1 Piece
Availability:
in stock, ready to be shipped
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire AWG: | 22-14 AWG |
| Stripping Length: | 6-7mm |
| Pitch: | 10mm (0.393") |
| Number of Poles: | 4 Poles |
| Electrical Rating: | 300V |
| Amp Rating: | 6.3AMP |
| Withstanding Voltage: | AC2000V/1Min |
| Operating Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
