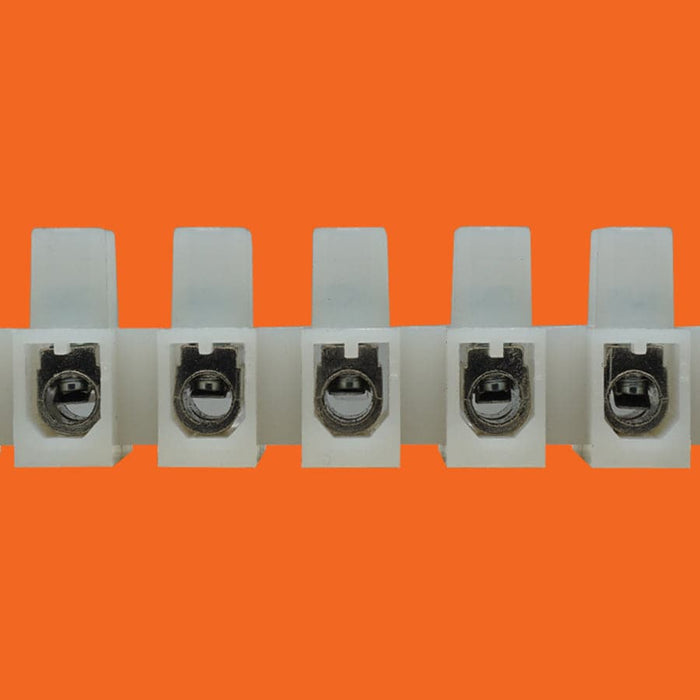

14 to 10 AWG Barrier Strip w/ Wire Protection - 300v, 30A, 12 Poles, 11.5mm Pitch #GT1450HB-12
Original price
$15.57
-
Original price
$15.57
Original price
$15.57
$15.57
-
$15.57
Current price
$15.57
SKU GT1450HB-12
Availability:
in stock, ready to be shipped

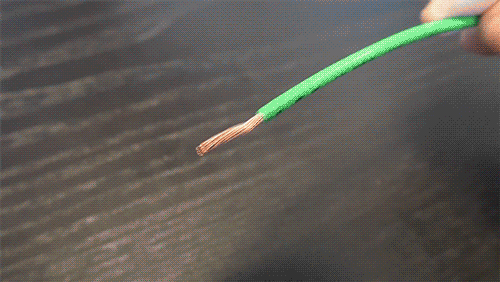

Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire AWG: | 14-10 AWG |
| Stripping Length: | 7-8mm |
| Pitch: | 11.5mm (0.45") |
| A: | 134.2mm (5.28") |
| B: | 23.4mm (0.92") |
| C: | 19.1mm (0.75") |
| D: | 11.5mm (0.45") |
| E: | 3.7mm (0.15") |
| F: | 7.8mm (0.31") |
| Number of Poles: | 12 Poles |

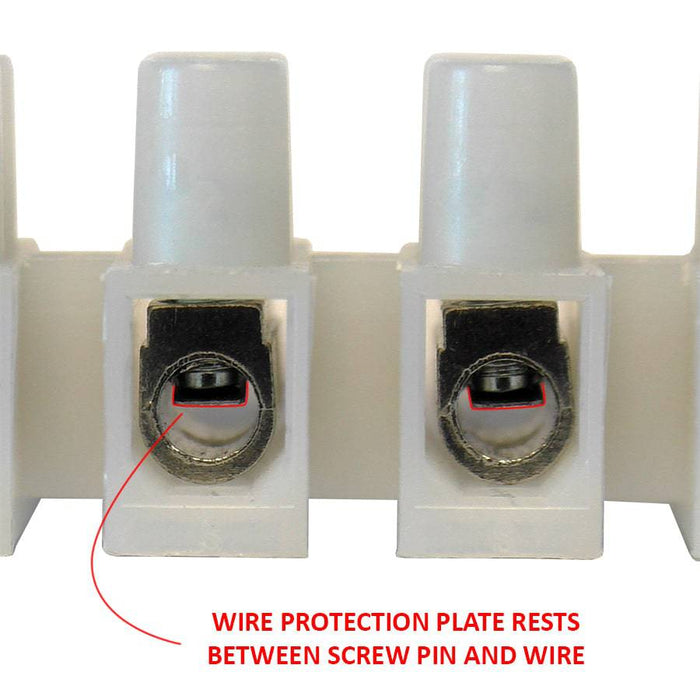

| Wire Protector: | Yes |
| Material: | Polyamide (PA66) |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 50AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
