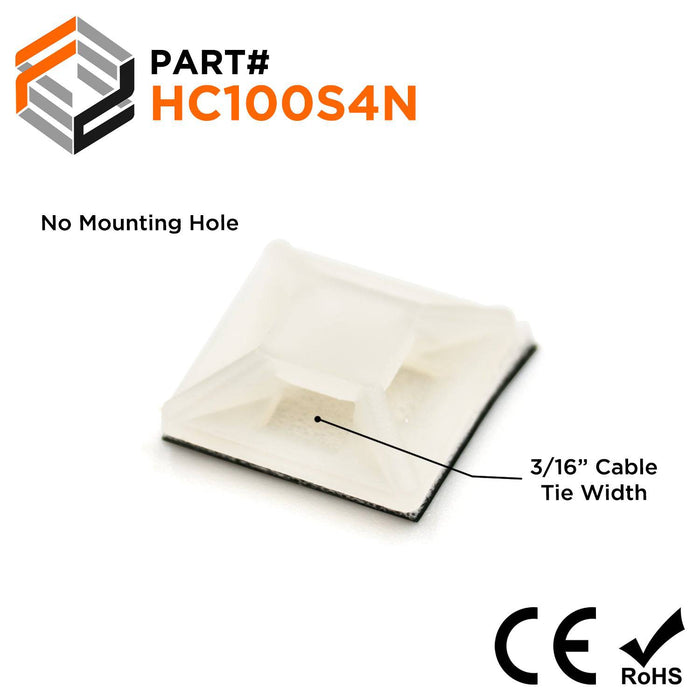

HC100S4N - Self-adhesive Tie Mounts - 12.5 x 12.5 x 3.2mm - Natural - No Mounting Holes
Original price
$4.95
-
Original price
$4.95
Original price
$4.95
$4.95
-
$4.95
Current price
$4.95
SKU HC100S4N
Availability:
in stock, ready to be shipped
Self-adhesive tie mounts offer lightweight support to wire bundles. For added support of heavy wire bundles, tie mounts are also available with a screw mounting hole. Always apply on a clean, smooth, grease-free surface.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Size: | 12.5 x 12.5 x 3.2mm |
| Color: | Natural |
| L: | 12.5mm (0.49") |
| W: | 12.5mm (0.49") |
| H: | 3.2mm (0.13") |
| T: | 4.6mm (0.18") |
| Mounting Hole: | N/A |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
